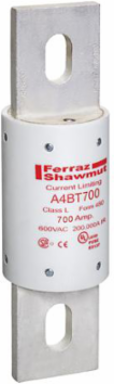

Mersen A4BT700 Fuse A4BT - Class L - Time-Delay 600VAC 500VDC 700A Blade Amp-Trap®

Fuse A4BT - Class L - Time-Delay 600VAC 500VDC 700A Blade Amp-Trap®
  • MPN: A4BT700
  • UPC: 782001939885
  • PPN: FER-A4BT700

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$444.64/ EA

Description

The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment.

Specifications

Specifications

Rated voltage AC UL
600 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Fuse Class
Class L
Mounting
Bolted
Connection/Terminal Material
Silver-Plated Copper
Body/Insulating Material
GMG
Weight
3.73 lb
Rated voltage DC UL500 V
Ampere Rating700 A
AC or DCAC/DC
Speed/CharacteristicTime Delay
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
Length8.63 in
