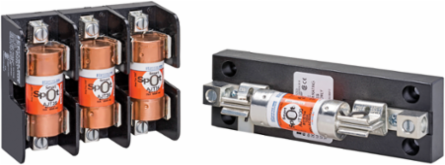

Mersen 61008SJ Fuse Base 600V 100A Class J 3-pole GFPC Box Side-Clip, Max Temp 80°C
Mersen 61008SJ Fuse Base 600V 100A Class J 3-pole GFPC Box Side-Clip, Max Temp 80°C
- MPN: 61008SJ
- UPC: 782001361259
- PPN: FER-61008SJ
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$117.07/ EA
Description
Mersen open style class J fuse blocks accommodate all class J fuses ranging from 0-600A, 600V. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. SJ fuse blocks are more compact than the traditional offering and feature a unique adder block configuration for multi-pole field assembly. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring reinforced or non-spring reinforced clips.
Specifications
Specifications
- Frequency Hz
- 50/60 Hz
- Max Storage Temp
- 80 °C
- Short Circuit Current Rating Sccr
- 200 kA
- Max Fuse Rating
- 100 A
- Rated Voltage Dc Ul
- 600 V
- Country Of Origin
- MX
- Body Insulating Material
- GFPC
- Number Of Poles
- 3-pole
- Wire Connections
- Box Side-Clip
Max Operating Temp80 °C
Min Storage Temp-25 °C
Ampere Rating100 A
Rated Voltage Ac Ul600 V
Torque Rating60 lb-in
Product Line6SJ - Class J
Installation MountingDirect Screw Mount
Fuse Installation MethodClip-in
