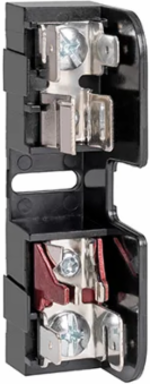

Mersen 30320R 600V 30A Class CC Fuse Base, GFPC Insulation, Pressure Plate Connection
Mersen 30320R 600V 30A Class CC Fuse Base, GFPC Insulation, Pressure Plate Connection
- MPN: 30320R
- UPC: 782001663544
- PPN: FER-30320R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$9.49/ EA
Description
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class CC
- Fuse Type/Class
- Class CC
- Fuse Installation Method
- Clip-in
- Max Fuse Rating
- 30 A
- Body/Insulating Material
- Glass Filled Polycarbonate
- Length
- 3.04 in
- Weight
- 0.1 lb
Rated voltage DC UL600 V
Ampere Rating30 A
AC or DCAC/DC
Short Circuit Current Rating (SCCR)200 kA
Number of PolesAdder
Torque Rating20 lb-in
Installation MountingScrew Mount or DIN Rail
Width2.35 in
Height1.31 in
