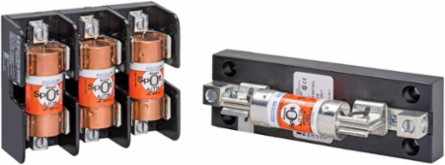

Mersen 60355SJ Fuse Bases 600V 30A Class J Adder Tin-Plate Copper Copper Box
Mersen 60355SJ Fuse Bases 600V 30A Class J Adder Tin-Plate Copper Copper Box
- MPN: 60355SJ
- UPC: 782001672607
- PPN: FER-60355SJ
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$39.26/ EA
Description
Mersen open style class J fuse blocks accommodate all class J fuses ranging from 0-600A, 600V. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. SJ fuse blocks are more compact than the traditional offering and feature a unique adder block configuration for multi-pole field assembly. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring reinforced or non-spring reinforced clips.
Specifications
Specifications
- Frequency Hz
- 50/60 Hz
- Max Storage Temp
- 80 °C
- Short Circuit Current Rating Sccr
- 200 kA
- Max Fuse Rating
- 30 A
- Rated Voltage Dc Ul
- 600 V
- Country Of Origin
- MX
- Body Insulating Material
- GFPC
- Number Of Poles
- Adder
- Wire Connections
- Copper Box
Max Operating Temp80 °C
Min Storage Temp-25 °C
Ampere Rating30 A
Rated Voltage Ac Ul600 V
Torque Rating35 lb-in
Product Line6SJ - Class J
Installation MountingScrew Mount or DIN Rail
Fuse Installation MethodClip-in
