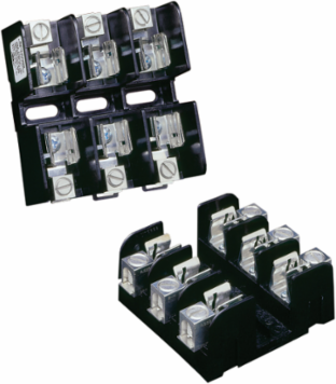

Mersen U70508 750V 50A 3-Pole Semiconductor Fuse Base with Clip-in Installation, Thermoplastic
Mersen U70508 750V 50A 3-Pole Semiconductor Fuse Base with Clip-in Installation, Thermoplastic
- MPN: U70508
- UPC: 782001323608
- PPN: FER-U70508
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$90.07/ EA
Description
Mersen Semiconductor fuse blocks feature open face styles. Each version is rated 750 volts and accommodates 14 x 51mm or 22 x 58mm IEC Cylindrical fuses. 703, U705 and U710 fuseholders feature Mersen's unique adder-block design which can be assembled onto 1, 2, or 3-pole fuseholders to form multi-pole segmented holders of as many poles as desired. A choice of box, screw, or pressure plate connectors is offered to fit a wide range of standard or solid copper wire. All versions have verified dielectric strength in excess of 2500V. A patented built-in DIN-rail adapter on the U710 blocks adds further design versatility. All fuse clips are made of high conductivity tin-plated copper with spring reinforced clips.
Specifications
Specifications
- Rated voltage AC UL
- 750 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Short Circuit Current Rating (SCCR)
- 200 kA
- Number of Poles
- 3-Pole
- Fuse Installation Method
- Clip-in
- Max Fuse Rating
- 50 A
- Body/Insulating Material
- Thermoplastic
- Length
- 3 in
- Weight
- 0.34 lb
Rated voltage DC UL750 V
Ampere Rating50 A
AC or DCAC/DC
Fuse Type/ClassSemiconductor
Wiring rangeAl/Cu #2-14
Torque Rating35 lb-in
Installation MountingScrew Mount or DIN Rail
Width3 in
Height1.37 in
