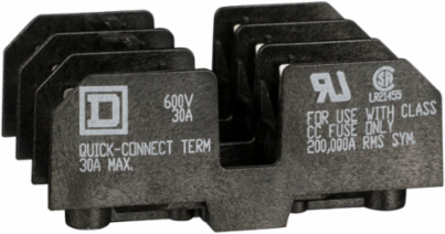

Square D 9070FB3A Transformer accessory, fuse block, 3 pole
Square D 9070FB3A Transformer accessory, fuse block, 3 pole
- MPN: 9070FB3A
- UPC: 785901907947
- PPN: SCH-9070FB3A
- UNSPSC: 39121629
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$56.85/ EA
Description
In a control transformer system, the fuse block serves a critical protective function by safeguarding both the transformer and the connected control circuitry from overcurrent conditions. Typically installed on the primary side of the transformer, the fuse block contains replaceable fuses that are designed to interrupt the electrical flow when current exceeds safe operating limits. This prevents damage caused by short circuits, overloads, or equipment faults, thereby enhancing system reliability and safety. Additionally, fuse blocks facilitate easy maintenance and troubleshooting by allowing quick visual inspection and replacement of blown fuses, making them an essential component in industrial and commercial control panels. It is a 3 pole fuse block for Primary and Secondary fusing. It accommodates 1-1/2 x 13/32 inches midget fuse.
Features
- 50/60 Hz rated
- Customer installed accessories (Finger-Safe covers, fuse blocks, fuse clips)
- Designed with various temperature classes
- Factory installed fuse blocks are pre-wired and mounted on top of the transformer,
- UL E61239, CSA LR37055 Guide 184-N-90
Specifications
Important Information Attributes
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Energy Efficiency Optimized
- False
- Phase
- 1 phase
- Product Or Component Type
- Industrial Control Transformer
- Sustainable Packaging
- No
- Medium Desc
- Transformer accessory, fuse block, 3 pole
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Local Publishable Date2025-11-13
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Package Weight Lbs185.973 g
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stocking FlagY
Pep CodeENVPEP1308008EN
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1308008EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Take BackNo
Mercury FreeYes
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1308008EN
General Attributes
- Phase
- 1 phase
Product Or Component TypeIndustrial Control Transformer
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
