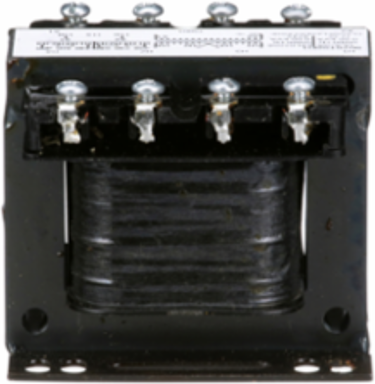

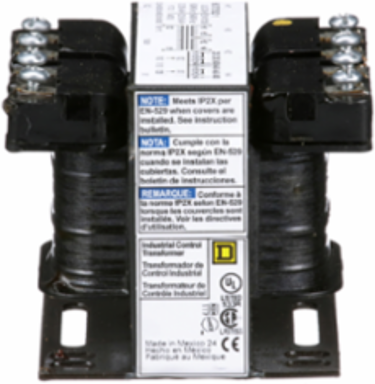

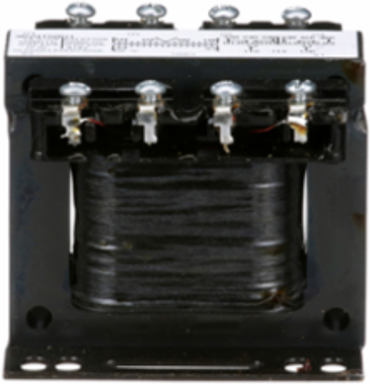

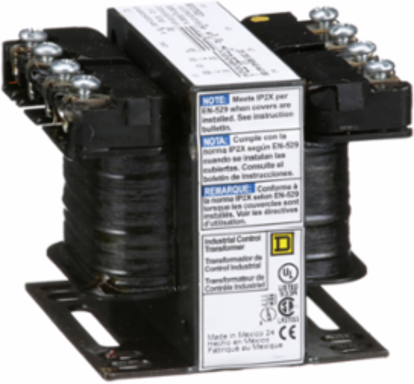

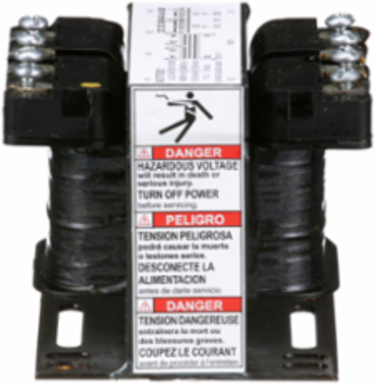

Square D 9070T50D1 Type T Industrial Control Transformer, 50VA, 1 Phase, 240x480V
Square D 9070T50D1 Type T Industrial Control Transformer, 50VA, 1 Phase, 240x480V
- MPN: 9070T50D1
- UPC: 785901904632
- PPN: SCH-9070T50D1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$78.71/ EA
Description
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They offer field installed accessories to expand the applicational needs for the product. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type T is a single phase 50VA transformer designed for 240x480VAC primary with a 120VAC secondary. (The unit also supports 230x460VAC to 115VAC and 220x440VAC to 110VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL, UL labels, and self certified to the EN standards carrying a CE mark.
Specifications
Environment
- Product Certifications
- UL listed file E61239 || CSA file LR37055 guide 184-N-90
- Insulation Temperature
- 105 °C
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 2.58 in
- Material
- copper: winding
- Rated Power In Va
- 50 VA UL || 50 VA CSA || 50 VA NOM || 50 VA CE
- Depth
- 3.09 in
- Primary Voltage
- 240 x 480 V 120 V || 230 x 460 V 115 V || 220 x 440 V 110 V
Temperature Rise55 °C
Electrical Connectionscrew clamp terminals
Width3 in
Product CompatibilityFSC1
Network Number Of Phases1 phase
Specifications
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
