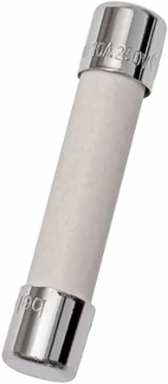

Mersen GAB5 Fast-Acting Fuse 250V 5A 1/4 Inch x 1-1/4 Inch Ceramic
- MPN: GAB5
- UPC: 782001760106
- PPN: FER-GAB5
CAD
$5.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Fast-Acting, Ceramic, 1/4 x 1-1/4
Features
- This miniature ceramic cylindrical fuse features industry-standard 1/4" x 1-1/4" dimensions (6.3mm x 32mm) with a standard ferrule terminal connection. It provides a drop-in replacement that snaps securely into standard panel-mount or clip-mount fuse blocks without requiring custom retrofitting.
- Constructed with a high-grade ceramic tube, this fuse is built to withstand significantly higher internal pressures and thermal shock during severe overcurrent conditions. The ceramic insulation safely contains potential electrical arcs, preventing the body from shattering or causing secondary damage within your electrical enclosure.
- Rated for 5 Amps at up to 250 Volts AC, this supplemental overcurrent protection device boasts a high interrupting rating of 10,000 AIC at 125VAC and 200 AIC at 250VAC.
- Fully UL Listed and CSA Certified, the GAB5 complies strictly with all major North American safety and building standards while remaining fully RoHS compliant. Using code-compliant, certified components ensures your equipment passes inspection easily and protects your manufacturing or facility operations from liability.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V AC UL
- Speed/Characteristic
- Fast-Acting
- Length
- 1.25 in
- Connection/Terminal Type
- Ferrule
- Weight
- 0.01 lb
- Compliance
- RoHS, UL Listed, CSA Certified
Amperage5 A
Fuse Size6.4x31.8 mm
MountingClip
MaterialCeramic
Fuse ClassSupplemental
AC or DCAC
