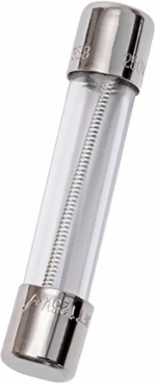

Mersen GGC5 Fast-Acting Fuse 250V 5A 1/4" x 1-1/4" Glass
- MPN: GGC5
- UPC: 782001760724
- PPN: FER-GGC5
CAD
$0.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Fast Acting, Glass, 1/4" x 1 1/4"
Features
- Manufactured with the industry-standard 6.3x32mm cylindrical footprint, this GGC-series glass fuse is a direct replacement for most North American electronic and automotive fuse holders. Its fast-acting performance ensures that power is interrupted within milliseconds of a fault, shielding sensitive circuit board components and delicate internal wiring from irreparable heat damage.
- Optimized for 5-amp current draws at up to 250 volts, this fuse provides precise overcurrent defense for lighting ballasts, small power supplies, and control transformers. The clear glass tube construction allows for immediate visual verification of a blown element, enabling facility technicians and maintenance staff to diagnose power failures in seconds without needing a continuity tester.
- Equipped with high-conductivity silver-plated brass end caps, this fuse is engineered to resist oxidation and corrosion over long-term use. This ensures a low-resistance contact point within your fuse clips, preventing localized overheating and voltage drops that can lead to intermittent equipment behavior or premature failure in high-duty cycle environments.
- Fully UL Listed and CSA Certified, this supplemental protection device meets the most rigorous safety standards for electronic component safeguarding. With an interrupting rating of 200A at 250V, it is designed to safely contain the arc during a short circuit event, preventing fire hazards and ensuring your equipment repairs remain fully compliant with local electrical inspections.
Documentation & Downloads
Specifications
Additional
- Speed/Characteristic
- Fast-Acting
- Rated Voltage AC UL
- 250 V
- Length
- 1.25 in
- Connection/Terminal Type
- Ferrule
- ROHS Compliant
- Yes
- AC or DC
- AC
- Certifications
- UL Listed, CSA Certified
Ampere Rating5 A
Fuse Size6.3x32
MountingClip
Body/Insulating MaterialGlass
Fuse ClassSupplemental
Weight0.01 lb
