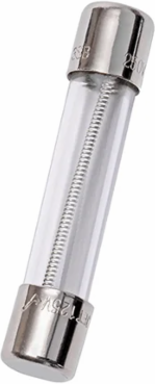

Mersen GDL10 Time-Delay Fuse 125V 10A Glass 1/4 Inch x 1-1/4 Inch
- MPN: GDL10
- UPC: 782001763381
- PPN: FER-GDL10
CAD
$2.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Time Delay, Glass, 1/4" x 1 1/4"
Features
- Precision-engineered to the universal 6.3x32mm miniature fuse standard, this GDL-series fuse is a direct-replacement fit for thousands of industrial and consumer devices. The clear glass tube allows for immediate visual confirmation of a blown circuit, saving you the time and hassle of using a multimeter to diagnose power failures in tight control panels.
- Featuring a specialized dual-element design, this 10A fuse is built to withstand temporary, harmless current spikes typical of small motors, solenoids, and heavy-duty power supplies. It provides the perfect balance between protection and performance, preventing "nuisance blowing" during equipment startup while still reacting quickly to genuine, dangerous electrical overloads.
- This component is fully UL Listed and CSA Certified, meeting the rigorous safety and performance standards required for both residential and commercial electrical systems. With an interrupting rating (IR) of 10,000A at 125V AC, it is built to safely contain and extinguish internal arcs during a short circuit, protecting your hardware from catastrophic failure and ensuring your installation remains fully code-compliant.
Documentation & Downloads
Specifications
Additional
- Voltage
- 125 V AC
- Fuse Class
- Supplemental
- Speed/Characteristic
- Time Delay
- Length
- 1.25 in
- Connection/Terminal Type
- Ferrule
- Mounting
- Clip
Amperage10 A
Fuse Size6.3 x 32 mm
AC or DCAC
Weight0.01 lb
Body/Insulating MaterialGlass
RoHS ComplianceYes
