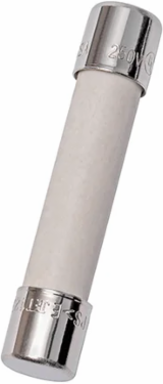

Mersen GSA2 Time-Delay Fuse, Ceramic, 250V, 2A, 1/4" x 1-1/4"
- MPN: GSA2
- UPC: 782001764128
- PPN: FER-GSA2
CAD
$5.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Time Delay, Ceramic, 1/4" x 1 1/4"
Features
- Engineered with advanced time-delay (slow-blow) characteristics, this 2-amp fuse temporarily tolerates harmless inductive surges and high initial inrush currents. This intentional delay prevents costly operational downtime and frustrating premature trips when powering small industrial motors, transformers, solenoids, and control circuits.
- Constructed with a highly durable, industrial-grade ceramic tube, this miniature fuse provides superior thermal stability and structural integrity compared to standard glass alternatives. The robust ceramic casing safely contains intense internal arcs and resists extreme heat during severe overcurrent faults, ensuring nearby control components remain protected from catastrophic soot or debris damage.
- Featuring standard 1/4 in times 1-1/4 in (6.3 times 32 mm) miniature cylindrical dimensions, this supplemental fuse offers seamless physical compatibility with existing terminal blocks, inline holders, and panel-mount fuse clips. It serves as a direct, plug-and-play cross-reference for industry standards like Bussmann MDA or Littelfuse 326, eliminating complex footprint conversions for maintenance teams.
- Rated for up to 250V AC, this versatile fuse delivers reliable protection with an interrupting capacity of 10,000 Amps at 125V AC and 100 Amps at 250V AC. These verified safety thresholds ensure the fuse can aggressively isolate localized short circuits within electronic instrumentation, preventing secondary damage to expensive upstream infrastructure.
- Fully certified to UL and CSA supplemental safety standards, this ferrule-terminal fuse satisfies stringent building codes and electrical inspection requirements. Relying on factory-tested, compliant overcurrent protection ensures your custom control panels, commercial appliance circuits, and OEM machinery assemblies operate legally and safely under professional liability terms.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V AC
- Fuse Type
- Time Delay
- Length
- 1.25 in
- Mounting
- Clip
- Fuse Class
- Supplemental
- Weight
- 0.01 lb
Amperage2 A
Fuse Size6.3x32 mm
MaterialCeramic
Connection TypeFerrule
AC or DCAC
ROHS CompliantYes
