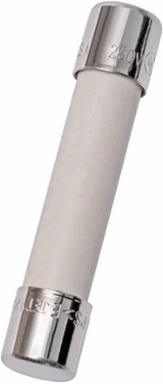

Mersen GSA5 Fuse GSA - Time-Delay 250V 5A 6x32mm Ceramic
- MPN: GSA5
- UPC: 782001764173
- PPN: FER-GSA5
CAD
$4.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Time Delay, Ceramic, 1/4" x 1 1/4"
Features
- Engineered with an intentional time-delay (slow-blow) design, this supplemental fuse temporarily tolerates harmless inrush currents caused by inductive loads. It completely eliminates frustrating nuisance trips during initial machine start-up while maintaining highly reliable, long-term thermal overload protection for downstream circuitry.
- Featuring a high-grade, shock-resistant ceramic body, this miniature fuse safely handles much higher thermal and physical stress during an electrical short. The heavy-duty ceramic housing prevents physical shattering and contains hazardous arcing under severe fault conditions, ensuring critical protection for surrounding control boards.
- Built to the widely compatible industry footprint of 1/4 in times 1-1/4 in (6.3 times 32 mm), this ferrule-ended terminal fuse drops into most supplemental fuse blocks, inline holders, and control panels. This standardized geometric fit simplifies routine field maintenance and ensures quick parts replacement without requiring system redesigns.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V
- Fuse Type
- Time Delay
- AC or DC
- AC
- Length
- 1.25 in
- Body/Insulating Material
- Ceramic
- Connection/Terminal Type
- Ferrule
Amperage5 A
Fuse ClassSupplemental
Fuse Size6.3x32 mm
Weight0.01 lb
MountingClip
RoHS CompliantYes
