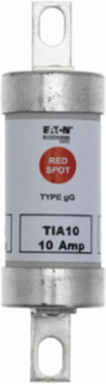

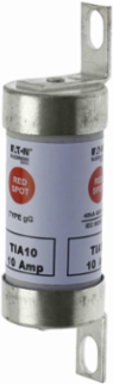

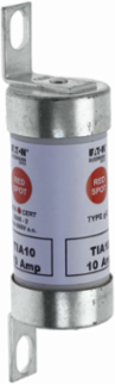

Bussmann TIA10 Fuse-Link, 10 A, 660 V AC, 460 V DC, Class C, 22 x 86 mm
- MPN: TIA10
- UPC: 051712392884
- PPN: BUS-TIA10
CAD
$44.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fuse-Link, 10 A, 660 V AC, 460 V DC, Class C, 22 x 86 mm
Documentation & Downloads
Specifications
General
| UPC | 051712392884 |
|---|---|
| Product Length/Depth | 86 mm |
| Product Width | 22 mm |
| Warranty | Not Applicable |
| EAN | 5027590514156 |
|---|---|
| Product Height | 22 mm |
| Product Weight | 58.1 g |
| Compliances | Contact factory |
General Information
| Class | Class C gL/gG |
|---|---|
| Fuse indicator | None |
| Insulated metal gripping lugs (IMGL) | No |
| Construction size | 22 x 86 mm |
|---|---|
| Fuse shape | Offset bolted tags |
| Utilization category | gL/gG (cable protection/equipment protection) |
Physical Details
| Packaging type | Standard |
|---|
Electrical Rating
| Amperage Rating | 10 A |
|---|---|
| Interrupt rating | 80 kAIC |
| Voltage rating | 660 V |
| Breaking capacity | 80 kA |
|---|---|
| Rated switching capacity | 80 A |
| Voltage type | AC/DC |
