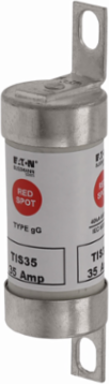

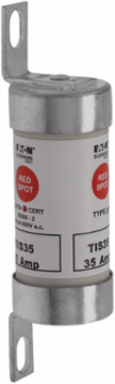

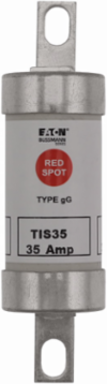

Bussmann TIS35 Low Voltage Fuse-Link 35 A 660 V AC/DC 22 x 86 mm gL/gG
- MPN: TIS35
- UPC: 051712392952
- PPN: BUS-TIS35
CAD
$115.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Fuse-Link 35 A 660 V AC/DC 22 x 86 mm gL/gG
Documentation & Downloads
Specifications
General
- UPC
- 051712392952
- Product Length/Depth
- 86 mm
- Product Width
- 23 mm
- Warranty
- Not Applicable
EAN5027590514316
Product Height23 mm
Product Weight58 g
CompliancesContact factory
Electrical Rating
- Amperage Rating
- 35 A
- Interrupt rating
- 80 kAIC
- Voltage rating
- 660 V
Breaking capacity80 kA
Rated switching capacity80 A
Voltage typeAC/DC
General Information
- Class
- Class C gL/gG
- Fuse indicator
- None
- Insulated metal gripping lugs (IMGL)
- No
Construction size22 x 86 mm
Fuse shapeOffset bolted tags
Utilization categorygL/gG (cable protection/equipment protection)
Physical Details
- Packaging type
- Standard
