Mersen

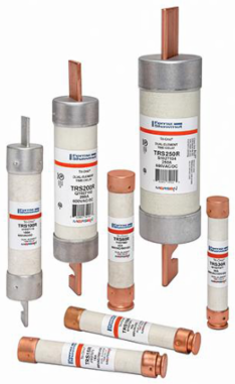

Mersen TRS90RID Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 90A Blade SmartSpot® Tri-Onic®

Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 90A Blade SmartSpot® Tri-Onic®
  • MPN: TRS90RID
  • UPC: 782001415167
  • PPN: FER-TRS90RID

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$108.64/ EA

Description

Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Specifications

Specifications

Rated voltage AC UL
600 V
Frequency (Hz)
50/60 Hz
AC or DC
AC/DC
Speed/Characteristic
Time Delay
AC Max I.R./Breaking Capacity: I1
200 kA
Indication System Type
SmartSpot®
Connection/Terminal Type
Blade
Length
7.88 in
Rated voltage DC UL600 V
Ampere Rating90 A
Fuse ClassClass RK5
MountingClip
Indication SystemYes
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialPolyTube
Weight0.628 lb
