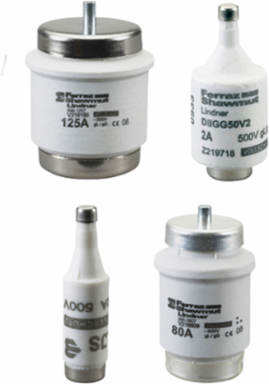

Mersen N217638 Fusible D Fuse-Link, DII, 690V, 16A, Grey, Ceramic Body, Clip Mount
- MPN: N217638
- PPN: FER-N217638
CAD
$223.97
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The D fuse-system is the first generation of screw fuse-system in the german DIN standard. It is still used in many installations. Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links. The D fuse range comprises the sizes NDZ, DII, DIII, DIV, DV.
Specifications
Key Specifications
| Rated voltage AC IEC | 690 V |
|---|---|
| Identification Color Code | Gris |
| AC or DC | AC |
| Fuse Size | DIII |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System Type | Colored indicator flag Visual Indicator |
| Power Dissipation at Rated Current Value | 14 W |
| Weight | 0.162 lb |
| Ampere Rating | 16 A |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | gG |
| Mounting | Clip |
| Indication System | Yes |
| Body/Insulating Material | Ceramic |
| Length | 2.76 in |
