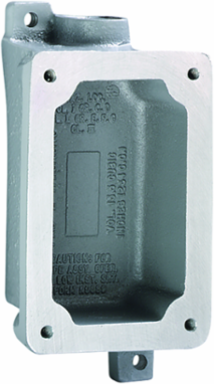

Killark FXB-2 Aluminum Dead-End Single Gang Splice Box ¾ Inch, 9.25 x 4.125 x 4.25 Inch
- MPN: FXB-2
- UPC: 783936200316
- PPN: HBL-FXB-2
- UNSPSC: 39122216
CAD
$179.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
FXB Series Aluminum Dead-End Single-Gang Splice Box - Factory Sealed -Hub Size ¾"
Features
- The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies.
- Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
Specifications
Key Specifications
- Mounting
- Wall
- Special Features
- Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
- Country of Origin
- China
- Depth
- 1-3/4 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 9.25 in
- Width
- 4.125 in
- Mounting Type
- Wall
- Type
- Aluminum Factory Sealed Single Gang Dead-End Splice Box
- Description - Invoice
- SPLICE BOX 3/4" 1GANG DEAD END
- Harmonization Code
- 7616999999
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 1.57
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936200316
- NAICS Code
- 3359326103
Size9.25 in x 4.125 in x 4.25 in
ARRA CompliantContact Manufacturer
ColorGray
Dimensions9.25 in x 4.125 in x 4.25 in
Height4.25 in
Weight1.57 lb.
ApplicationThe FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies
Nema Rating3
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714, LR11712
UL File NumberE53360
SeriesFXB Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
