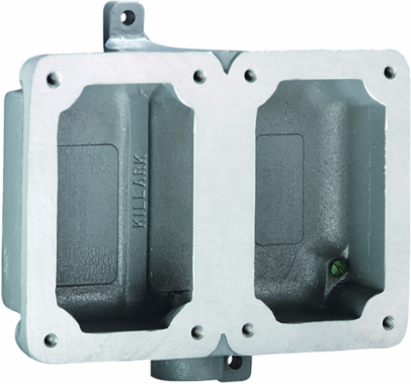

Killark FXB-8 Aluminum Factory Sealed Double Gang Splice Box, Hub Size 3/4 Inch, Nema 3
Killark FXB-8 Aluminum Factory Sealed Double Gang Splice Box, Hub Size 3/4 Inch, Nema 3
- MPN: FXB-8
- UPC: 783936200378
- PPN: HBL-FXB-8
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$547.95/ EA
Description
FXB Series - Aluminum Dead-End Double-Gang Splice Box - Factory Sealed -Hub Size 3/4 Inch
Features
- The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies.
- Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 8.25 in x 6 in x 6.75 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 8.25 in
- Color
- Gray
- Size
- 8.25 in x 6 in x 6.75 in
- Type
- Aluminum Factory Sealed Double Gang Dead-End Splice Box
- Width
- 6 in
- Nema Rating
- 3
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714, LR11712
- UL File Number
- E53360
- Series
- FXB Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936200378
Depth2
Each - Width6.000 in
Height6.75 in
ApplicationThe FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies
MountingWall
Special FeaturesKillark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
Weight2.91 lb.
Mounting TypeWall
ARRA CompliantContact Manufacturer
Description - InvoiceSPLICE BOX 3/4" 2GANG DEAD END
Harmonization Code7616995190
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging2.91
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
