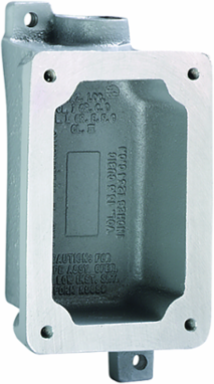

Killark FXB-3 Aluminum Factory Sealed Single-Gang Splice Box 1 Inch, NEMA 3, 9.25 x 4.125 x 4.25 Inch

MPN: FXB-3
UPC: 783936200323
PPN: HBL-FXB-3
UNSPSC: 39122216

$566.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

FXB Series - Aluminum Dead-End Single-Gang Splice Box - Factory Sealed -Hub Size 1 Inch

Features

The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies.
Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.

Specifications

Key Specifications

Country of Origin	United States
Dimensions	9.25 in x 4.125 in x 4.25 in
Height	4.25 in
Application	The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies
Mounting	Wall
Special Features	Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
Weight	1.24 lb.
Mounting Type	Wall
ARRA Compliant	Contact Manufacturer
Description - Invoice	SPLICE BOX 1" 1GANG DEAD END
Harmonization Code	7616995190
Lead Time	15 wk
Order Multiple	1 EA
Sub Class Code	D25D250
CSA File Number	LR11714, LR11712
UL File Number	E53360
Series	FXB Series
BOX SIZE	(in)
Master Pack Description	Each

Depth	1-3/4 in
Hazardous Rating(s)	Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length	9.25 in
Color	Gray
Size	9.25 in x 4.125 in x 4.25 in
Type	Aluminum Factory Sealed Single Gang Dead-End Splice Box
Width	4.125 in
Nema Rating	3
Class Code	D25
Freight Class Code	06316009
Image Actual Or Representative	R
MSDS Flag	No
Returnable Indicator	Yes
Buy America(n) Qualified	Buy American Act Compliant (All status valid till December 2026);BABA Compliant (All status valid till December 2026)
Gross Weight with Packaging	1.24
Material	Aluminum, Copper Free (less than 4/10 of 1%)
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00783936200323
NAICS Code	3359326103
