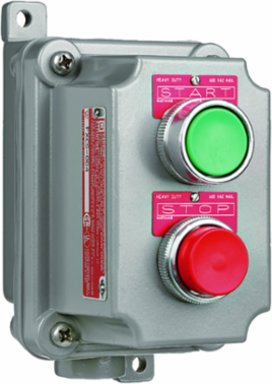

Killark FXCS-2B4-U Aluminum Dead-End Push Button Control Station 3/4 Inch Hub, IP65 Rated, 10A
- MPN: FXCS-2B4-U
- UPC: 783936201184
- PPN: HBL-FXCS-2B4-U
- UNSPSC: 39122216
CAD
$1513.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FXCS Series - Aluminum Dead-End Momentary Contact Double Push Button Control Station - Factory Sealed - Red And Green Buttons With "Start"Nameplates - Hub Size 3/4 Inch - 2NO/2NC Contact Rating
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 5.06 in |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Hub Size | 3/4" |
| Action | Momentary |
| Amperage Rating | 10 A |
| Color | Green-Red |
| Number of Poles | 2 |
| Special Features | Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. |
| Width | 6 in |
| Mounting Type | Bi-Directional Ductile Mounting Lugs |
| Number Of Poles | 2 |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11714, 2493125 |
| Gross Weight with Packaging | 4.4 |
| UL File Number | E53360, E12379 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936201184 |
| NAICS Code | 3359326103 |
| Back Box Type | FXB |
|---|---|
| Dimensions | 6.63 in x 6 in x 4.38 in |
| Height | 4.38 in |
| Length | 6.63 in |
| Actuator | Single Pushbutton |
| Application | SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings |
| Mounting | Bi-Directional Ductile Mounting Lugs |
| Size | 6.63 in x 6 in x 4.38 in |
| Type | Factory Sealed |
| Frequency Rating | 50/60 Hz |
| Nema Rating | 3 |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | BOX CVR 2PB 3/4" DEAD GR/RD U CON |
| Harmonization Code | 8536509035 |
| Lead Time | 15 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D250 |
| Factory Sealed | Factory Sealed |
| Hub Pattern | Dead-End |
| Series | FXCS Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
