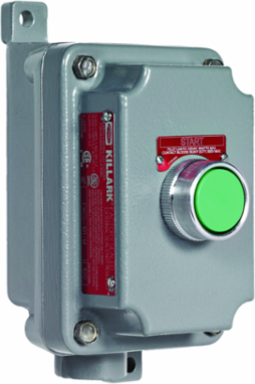

Killark FXCS-1B1-M Aluminum Dead-End Momentary Push Button Control Station 1/2 Inch Hub, 10A
- MPN: FXCS-1B1-M
- UPC: 783936104805
- PPN: HBL-FXCS-1B1-M
- UNSPSC: 39122221
CAD
$831.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
FXCS Series - Seal-XM - Aluminum Dead-End Momentary Contact Single Push Button Control Station - Factory Sealed - 1NO/1NC Contact - 1/2" Hub - Green Button
Features
- Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot light devices.
- External sealing fittings typically not required, reducing installation time and cost.
- No seal plate between the electrical device and back box allows direct wiring to contact terminals.
- NEMA 3 weatherproof.
- Grounding boss supplied in the splice box.
- Sold as a complete unit.
- Standard finish is a gray epoxy powder baked on for ultimate corrosion resistance.
- More wiring room in back box.
- Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
Specifications
Key Specifications
- Country of Origin
- United States
- Color
- Green
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Amperage Rating
- 10 A
- Special Features
- Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
- Action
- Momentary
- Frequency Rating
- 50/60 Hz
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SGL PB STA ASSY MOM GRN 1NO/1NC 1/2" DE
- Harmonization Code
- 8536509035
- MSDS Flag
- No
- CSA File Number
- LR11714, 2493125
- Hub Pattern
- Dead-End
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936104805
Back Box TypeFXB
Depth4.59 in
Hub Size1/2"
ApplicationSEAL-XM Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
TypeFactory Sealed
ActuatorSingle Pushbutton
Nema Rating3
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD25D250
Factory SealedFactory Sealed
SeriesFXCS Seal-XM Series
BOX SIZE(in)
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
