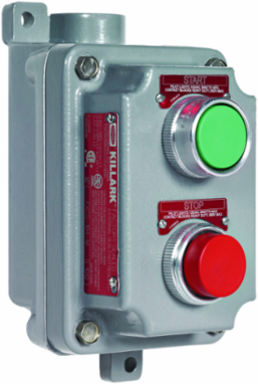

Killark FXCS-2B4-M Factory Sealed Aluminum Push Button Control Station 3/4 Inch Hub Double Pushbutton 10A
- MPN: FXCS-2B4-M
- UPC: 783936002057
- PPN: HBL-FXCS-2B4-M
- UNSPSC: 39122221
CAD
$1132.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FXCS Series - Seal-XM - Aluminum Dead-End Momentary Contact Double Push Button Control Station - Factory Sealed - Red And Green Buttons With "Start"Nameplates - Hub Size 3/4" - 2NO/2NC Contact Rating
Features
- Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot light devices.
- External sealing fittings typically not required, reducing installation time and cost.
- No seal plate between the electrical device and back box allows direct wiring to contact terminals.
- NEMA 3 weatherproof.
- Grounding boss supplied in the splice box.
- Sold as a complete unit.
- Standard finish is a gray epoxy powder baked on for ultimate corrosion resistance.
- More wiring room in back box.
- Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Color | Green-Red |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Amperage Rating | 10 A |
| Special Features | Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified. |
| Action | Momentary |
| Frequency Rating | 50/60 Hz |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | DBL PB STA ASSY MOM G/R 2NO/2NC 3/4" DE |
| Harmonization Code | 8536509035 |
| MSDS Flag | No |
| CSA File Number | LR11714, 2493125 |
| Hub Pattern | Dead-End |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936002057 |
| Back Box Type | FXB |
|---|---|
| Depth | 4.28 in |
| Hub Size | 3/4" |
| Application | SEAL-XM Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings |
| Type | Factory Sealed |
| Actuator | Double Pushbutton |
| Nema Rating | 3 |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | A |
| Sub Class Code | D25D250 |
| Factory Sealed | Factory Sealed |
| Series | FXCS Seal-XM Series |
| BOX SIZE | (in) |
| NAICS Code | 3359326103 |
