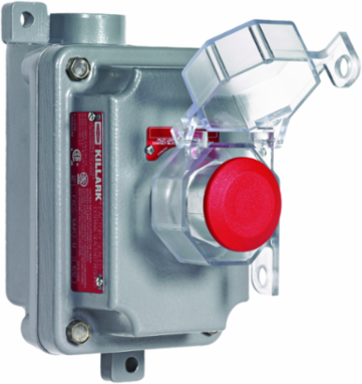

Killark FXCS-1MMR3-M-LO Aluminum Dead-End Push/Pull Mushroom Switch, 1/2 Inch Hub, NEMA 3
- MPN: FXCS-1MMR3-M-LO
- UPC: 783936124292
- PPN: HBL-FXCS-1MMR3-M-LO
CAD
$1611.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FXCS Series - Seal-XM - Aluminum Dead-End Maintained Contact Push/Pull Mushroom- Red Button- 1/2" Hub- 1NO/1NC Contact Rating with Lockout
Features
- Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot light devices.
- External sealing fittings typically not required, reducing installation time and cost.
- No seal plate between the electrical device and back box allows direct wiring to contact terminals.
- NEMA 3 weatherproof.
- Grounding boss supplied in the splice box.
- Sold as a complete unit.
- Standard finish is a gray epoxy powder baked on for ultimate corrosion resistance.
- More wiring room in back box.
- Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
Specifications
Key Specifications
- Country of Origin
- United States
- Color
- Red
- Width
- 6.250 in
- Hub Size
- 1/2"
- Actuator
- Mushroom Pushbutton
- Application
- SEAL-XM Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
- Nema Rating
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- MAINTAINED MUSH HD PB W/ LO RED 1/2" DE
- Harmonization Code
- 8536509035
- MSDS Flag
- No
- CSA File Number
- LR11714, 2493125
- Hub Pattern
- Dead-End
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936124292
- NAICS Code
- 3359326103
Back Box TypeFXB
Depth5.71 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ActionMaintained
Amperage Rating10 A
Frequency Rating50/60 Hz
TypeFactory Sealed
Class CodeD25
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeD25D250
Factory SealedFactory Sealed
SeriesFXCS Seal-XM Series
BOX SIZE4.375x6.500x6.250 (in)
Carton - Total Units1 EA
