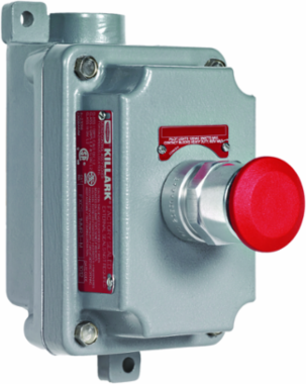

Killark FXCS-2MMR3-M Seal-XM Aluminum Push/Pull Mushroom Switch Red Button 3/4 Inch Hub 1NO/1NC
Killark FXCS-2MMR3-M Seal-XM Aluminum Push/Pull Mushroom Switch Red Button 3/4 Inch Hub 1NO/1NC
- MPN: FXCS-2MMR3-M
- UPC: 783936002576
- PPN: HBL-FXCS-2MMR3-M
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1067.57/ EA
Description
FXCS Series - Seal-XM - Aluminum Dead-End Maintained Contact Push/Pull Mushroom- Red Button- 3/4" Hub- 1NO/1NC Contact Rating
Features
- Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot light devices.
- External sealing fittings typically not required, reducing installation time and cost.
- No seal plate between the electrical device and back box allows direct wiring to contact terminals.
- NEMA 3 weatherproof.
- Grounding boss supplied in the splice box.
- Sold as a complete unit.
- Standard finish is a gray epoxy powder baked on for ultimate corrosion resistance.
- More wiring room in back box.
- Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
Specifications
Specifications
- Back Box Type
- FXB
- Country of Origin
- US
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Action
- Maintained
- Amperage Rating
- 10 A
- Frequency Rating
- 50/60 Hz
- Type
- Factory Sealed
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D25D250
- Factory Sealed
- Factory Sealed
- Series
- FXCS Seal-XM Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936002576
ColorRed
Depth5.59
Hub Size3/4"
ActuatorMushroom Pushbutton
ApplicationSEAL-XM Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
Nema Rating3
ARRA CompliantContact Manufacturer
Description - InvoiceMAINTAINED MUSHROOM HD PB RED 3/4" DE
Harmonization Code8536509035
MSDS FlagNo
CSA File NumberLR11714, 2493125
Hub PatternDead-End
Base Unit of MeasureEA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
