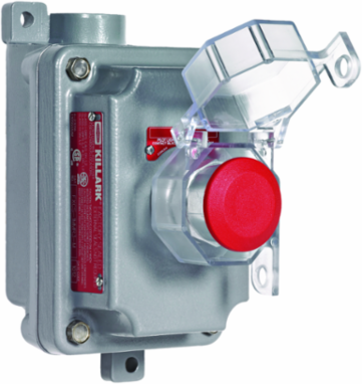

Killark FXCS-2MMR3-M-LO Aluminum Push/Pull Mushroom Switch, 3/4 Inch Hub, 10 A Amperage Rating
- MPN: FXCS-2MMR3-M-LO
- UPC: 783936124223
- PPN: HBL-FXCS-2MMR3-M-LO
CAD
$1611.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FXCS Series - Seal-XM - Aluminum Dead-End Maintained Contact Push/Pull Mushroom- Red Button- 3/4" Hub- 1NO/1NC Contact Rating with Lockout
Features
- Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot light devices.
- External sealing fittings typically not required, reducing installation time and cost.
- No seal plate between the electrical device and back box allows direct wiring to contact terminals.
- NEMA 3 weatherproof.
- Grounding boss supplied in the splice box.
- Sold as a complete unit.
- Standard finish is a gray epoxy powder baked on for ultimate corrosion resistance.
- More wiring room in back box.
- Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Back Box Type
- FXB
- Depth
- 5.71 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Action
- Maintained
- Amperage Rating
- 10 A
- Frequency Rating
- 50/60 Hz
- Type
- Factory Sealed
- Description - Invoice
- MAINTAINED MUSH HD PB W/ LO RED 3/4" DE
- Harmonization Code
- 8536509901
- MSDS Flag
- No
- CSA File Number
- LR11714, 2493125
- Hub Pattern
- Dead-End
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936124223
- NAICS Code
- 3359326103
Country of OriginUnited States
ColorRed
Width6.250 in
Hub Size3/4"
ActuatorMushroom Pushbutton
ApplicationSEAL-XM Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
Nema Rating3
Class CodeD25
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeD25D250
Factory SealedFactory Sealed
SeriesFXCS Seal-XM Series
BOX SIZE4.375x6.500x6.250 (in)
Carton - Total Units1 EA
