Killark

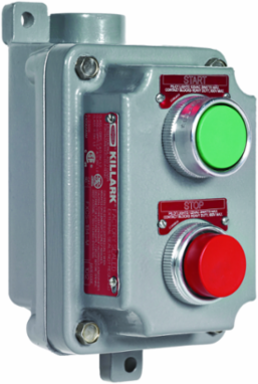

Killark FXCS-1B4-M Aluminum Control Station - 1/2 Inch Hub, Dual Push Buttons, NEMA 3

Aluminum Control Station - 1/2 Inch Hub, Dual Push Buttons, NEMA 3
  • MPN: FXCS-1B4-M
  • UPC: 783936105321
  • PPN: HBL-FXCS-1B4-M
  • UNSPSC: 39122221

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1078.25/ EA

Description

FXCS Series - Seal-XM - Aluminum Dead-End Momentary Contact Double Push Button Control Station - Factory Sealed - Red And Green Buttons - Hub Size 1/2 Inch - 2NO/2NC Contact Rating

Features

  • Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot light devices.
  • External sealing fittings typically not required, reducing installation time and cost.
  • No seal plate between the electrical device and back box allows direct wiring to contact terminals.
  • NEMA 3 weatherproof.
  • Grounding boss supplied in the splice box.
  • Sold as a complete unit.
  • Standard finish is a gray epoxy powder baked on for ultimate corrosion resistance.
  • More wiring room in back box.
  • Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.

Specifications

Specifications

Country of Origin
United States
Color
Green-Red
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Amperage Rating
10 A
Special Features
Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
Action
Momentary
Frequency Rating
50/60 Hz
ARRA Compliant
Contact Manufacturer
Description - Invoice
DBL PB STA ASSY MOM G/R 2NO/2NC 1/2" DE
Harmonization Code
8536509035
MSDS Flag
No
CSA File Number
LR11714, 2493125
Hub Pattern
Dead-End
Base Unit of Measure
EA
Back Box TypeFXB
Depth4.28 in
Hub Size1/2"
ApplicationSEAL-XM Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
TypeFactory Sealed
ActuatorDouble Pushbutton
Nema Rating3
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD25D250
Factory SealedFactory Sealed
SeriesFXCS Seal-XM Series
Carton - SCC-14 Next Lower Level Sub Pack00783936105321

Certifications

EU RoHS Indicator
Contact Manufacturer
