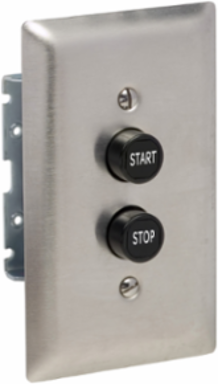

Schneider Electric 9001BF201 Push Button Control Station, 5A 600V, NEMA 1, Flush Mount, 2 Buttons
- MPN: 9001BF201
- UPC: 785901390459
- PPN: SCH-9001BF201
CAD
$137.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two round momentary push buttons. It has a START push button with a normally open contact and a STOP push button with a normally closed contact. This NEMA 1 general purpose flush mounting control station is not supplied with a pull box. It has a stainless steel flush plate. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
Physical Attributes
| Color Of Cover | grey |
|---|
| Housing Color | grey |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CE, UL listed file E42259 CCN NKCR, CSA LR25490 class 3211 03 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |

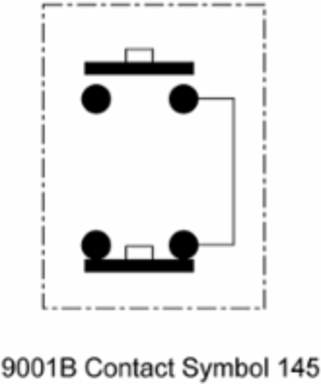

| Contacts Type And Composition | 1 NO + 1 NC |
| Dc Control Voltage | 125-600 V |
| Environmental Characteristic | standard environment |
| Operator Profile | 2 projecting push-buttons |
| Product Or Component Type | complete control station |
| Returnability | Yes |
| Ac Control Voltage 50 Hz | 125-600 V |
| Number Of Command Positions | 2 |
| Number Of Contacts As Normally Open Contact | 1 |
| Color Of Cover | grey |
| Pep Code | ENVPEP2503027EN |
| Connections - Terminals | screw clamp terminal |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109170 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Station Composition | 2 push-buttons START-STOP |
| Device Short Name | 9001BF |
| Housing Material | metal |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony 9001B |
| Sustainable Packaging | No |
| Ac Control Voltage 60 Hz | 125-600 V |
| Number Of Contacts As Normally Closed Contact | 1 |
| Number Of Push Buttons | 2 |
| Housing Color | grey |
| [Ie] Rated Operational Current | 5 A 600 V |
| Emergency Power Off (Epo) | no |
| Package Weight(Lbs) | 226.796 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Nema Degree Of Protection | NEMA 13, NEMA 1 |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | complete control station |
|---|
| Range Of Product | Harmony 9001B |
|---|
ETIM
| ETIM 8 | EC000225 |
|---|
| ETIM 9 | EC000225 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
