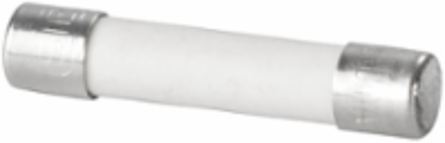

Weidmuller 0192900000 G 25/6.30A/F GN
- MPN: 0192900000
- PPN: WDM-0192900000
CAD
$6.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Active components, Fuse
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 5 mm |
|---|---|
| Height | 25 mm |
| Depth | 5 mm |
| Net weight | 1.4 g |
| Width (inches) | 0.197 inch |
|---|---|
| Height (inches) | 0.984 inch |
| Depth (inches) | 0.197 inch |
Material Data
| Colour | Light Grey |
|---|
Classifications
| ETIM 6.0 | EC000035 |
|---|---|
| eClass 9.0 | 27-14-20-01 |
| eClass 10.0 | 27-14-20-01 |
| ETIM 7.0 | EC000035 |
|---|---|
| eClass 9.1 | 27-14-20-01 |
| UNSPSC | 30-21-18-14 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | Fuse accessories |
|---|
Rating Data
| Rated voltage | 250 V |
|---|
| Rated current | 6.3 A |
|---|
Fuse Cartridges
| Cartridge fuse | G-Si. 5 x 25 |
|---|---|
| Colour | Light Grey |
| Current | 6.3 A |
| Power output (@ 1.5 In) | 1.8 W |
| Version | Fuse accessories |
| Characteristics | quick-acting |
|---|---|
| Colour of the indicator | green |
| Melting integral | 170 A2s |
| Rated breaking capacity | 1.5 kA |
| Voltage drop | 160 mV |
