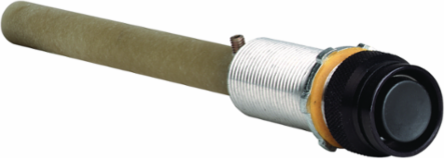

Killark GO-RST G Series Aluminum Long Reset Operator with 6.31 Inch x 2.25 Inch x 1.25 Inch Size
- MPN: GO-RST
- UPC: 783936223650
- PPN: HBL-GO-RST
- UNSPSC: 39122216
CAD
$247.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Key Specifications
- Number of Poles
- 1
- Special Features
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.31 in
- Action
- SP
- Application
- G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- Series
- GO Series
- BOX SIZE
- 1.375x6.750x2.250 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936223650
- Master Pack Description
- Each
Size6.31 in x 2.25 in x 1.25 in
ARRA CompliantContact Manufacturer
Dimensions6.31 in x 2.25 in x 1.25 in
Height1.25 in
Width2.25 in
ActuatorPushbutton
Nema Rating3, 4, 4X
TypeSpecialty
Description - InvoiceRESET OPERATOR GP B NEMA 4
Harmonization Code8538909999
Lead Time10 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging0.46
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
