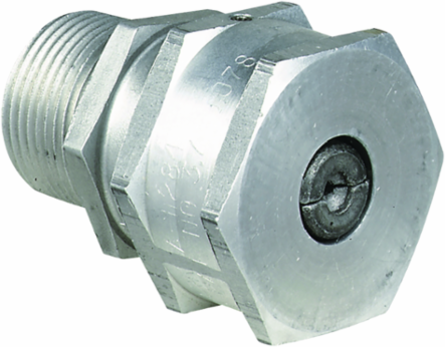

Killark GO-11372-093 Capillary Seal 0.093 Inch for Hazardous Location Control Functions
- MPN: GO-11372-093
- UPC: 783936220000
- PPN: HBL-GO-11372-093
- UNSPSC: 39122216
CAD
$458.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Key Specifications
- Country of Origin
- United States
- Actuator
- Capillary Seal
- Special Features
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
- Frequency Rating
- 50/60 Hz
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.5
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- NAICS Code
- 3359326103
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ApplicationG Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
TypeSpecialty
ARRA CompliantContact Manufacturer
Description - InvoiceCAPILLARY SEAL .093 SIZE
Harmonization Code7616995190
Lead Time10 wk
Order Multiple1 EA
Sub Class CodeD25D250
SeriesGO Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783936220000
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
