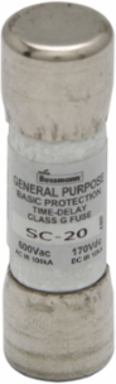

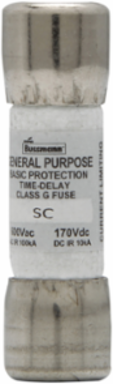

Bussmann BK/SC-20 General Purpose Fuse 20A, 0.41 Inch Diameter, Current-limiting, Time Delay
- MPN: BK/SC-20
- UPC: 051712750110
- PPN: BUS-BK/SC-20
CAD
$25.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
General Purpose Fuse 20A, 0.41 Inch Diameter, Current-limiting, Time Delay
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.41 IN
- Width
- .41 IN
- Type
- Current-limiting, time delay
- Voltage Rating
- 600 Vac, 170 Vdc
- Interrupt Rating
- 100 kAIC at 600 Vac, 10 kAIC at 170 Vdc
- Connection
- Ferrule end X ferrule end
- Diameter
- .41 IN
- Response Time
- 12s at 200%
Length.41 IN
Weight.15 LB
Special FeaturesRejection style
Amperage Rating20A
ClassClass G
Packaging TypeStandard
Fuse IndicatorNon Indicating
NotesBulk
