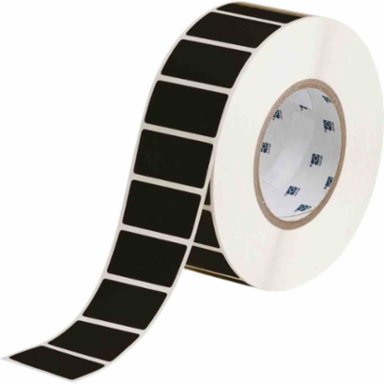

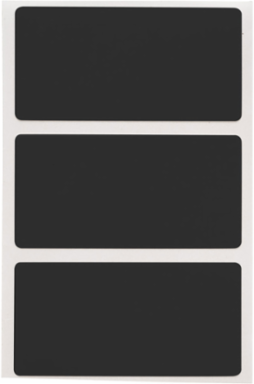

Brady THT-17-8117-3 General Purpose Matte Polyester Labels, 1" H x 2" W, Clear on Black, Roll of 3000 Labels
- MPN: THT-17-8117-3
- UPC: 754473548049
- PPN: BRD-THT-17-8117-3
- UNSPSC: 55121612
CAD
$461.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-8117 Ultra-Durable Black Polyester Labels from Brady® have excellent print durability, barcode readability and aesthetics.
Features
- The black color is achieved through the adhesive layer, rather than the topcoat, which results in more robust color permanence
- Color is sealed inside the label construction, increasing color durability
- Powerful combination of topcoat and the R6800 Series ribbon from Brady® produces superior print durability against both abrasions and harsh fluids
- Material consistently achieves Barcode Grade B or greater
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Asset Tracking; General Identification; Laboratory Labeling
- Brand Name
- Brady®
- Compatible Surface Types
- Low Surface Energy
- Diagram
- Icon 3 (triangle)
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Roll
- 3000
- Recommended Ribbon
- IP-R6802-WT; R6802-WT
- Shape
- Rectangle
- Suggested Ribbon Series
- R4400; R6800
- Total Quantity
- 3000
- Adhesive (Y/N)
- Yes
- After Process
- Yes, this material will work with this application
- Label Properties
- Permanent Adhesive Labels
- Overlaminate Included
- No
- Core Diameter (mm/cm/m)
- 76.20 mm
- Dimensions (Metric)
- 50.80 mm W x 25.40 mm H
- Height (in/ft/yd)
- 1 in
- Inside Core Diameter (in/ft/yd)
- 3 in
- Maximum Service Temperature °C
- 120 °C
- Minimum Service Temperature °C
- -70 °C
- Sign Size-General
- 1 in x 2 in
- Thickness (in/ft/yd)
- 0.0035 in
- Vertical Repeat
- 1.125 in
- Web Width (in/ft/yd)
- 2.2 in
- Width (in/ft/yd)
- 2 in
Board ApplicationThrough Hole - Top
ColorBlack
Corner TypeRounded Corners
Enables Industry ComplianceC-UL US; DIN; RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC; UL; UL Recognized
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsGeneral Identification; Rating & Name Plates
Printer Compatibility (Print)BBP12; i7100; i5100
Quantity per Row1
Ribbon SeriesR4400W; R6800
SoftwareCodeSoft; LabelMark
Total Qty per Pack3000 Label(s) / Roll
Trade NameWorkHorse
Adhesive TypeRubber
Brady Material NumberB-8117
MaterialPolyester
SAP B-NumberB-8117
Dimensions1 in H x 2 in W
Dimensions 21 in H x 2 in W
Height (mm/cm/m)25.40 mm
Label/Tape Size (in/ft/yd)1 in H x 2 in W
Maximum Service Temperature °F248 °F
Minimum Service Temperature °F-94 °F
Size - Width (mm)50.80 mm
Thickness (mm/cm/m)0.0889 mm
Vertical Repeat (mm)28.58 mm
Web Width (mm/cm/m)55.88 mm
Width (mm/cm/m)50.8 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
