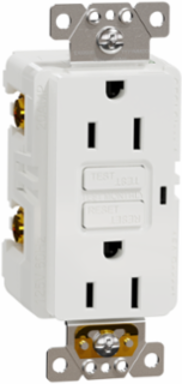

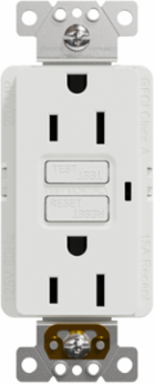

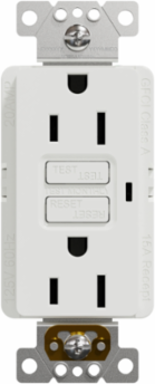

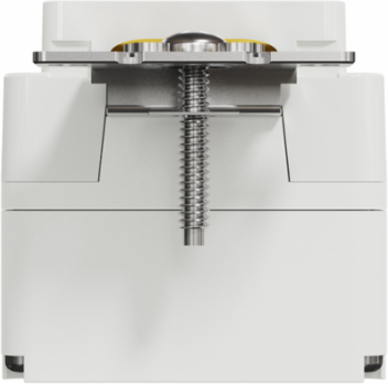

Schneider Electric SQR51101WH X Series GFCI Duplex Receptacle 15A 125V Tamper Resistant White
- MPN: SQR51101WH
- UPC: 785901544562
- PPN: SCH-SQR51101WH
- UNSPSC: 39121406
CAD
$25.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
X Series GFCI Duplex Receptacle 15A 125V Tamper Resistant White
Features

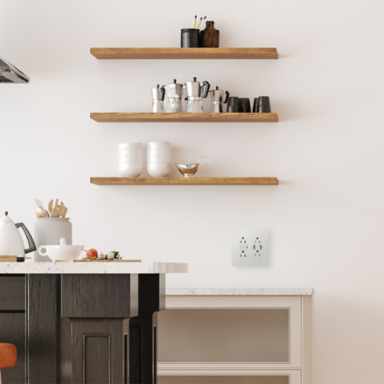

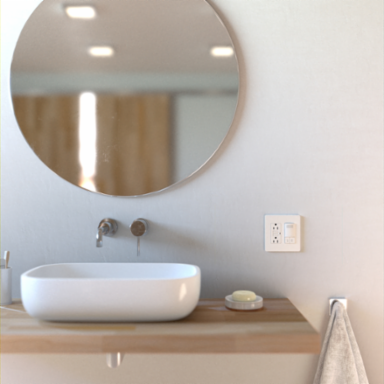

- The Schneider Electric Square D SQR51101WH is a high-performance 15-Amp, 125V GFCI (Ground Fault Circuit Interrupter) Receptacle. Part of the modern X Series, it is designed to protect people from electrical shock by quickly interrupting power if a ground fault is detected. It is an essential safety requirement for "wet" areas like kitchens, bathrooms, and garages in Canadian residential and commercial buildings.
- This model features Tamper-Resistant (TR) shutters. These discrete internal shutters block the insertion of foreign objects (like keys or paperclips) into the slots, while still allowing for easy insertion of standard electrical plugs. This is a mandatory safety feature for new residential constructions and renovations under the Canadian Electrical Code (CEC) to protect children.
- This device includes an auto-monitoring (self-test) feature that automatically conducts an internal test every 90 minutes. If the device detects a problem and can no longer provide ground fault protection, a red indicator light will flash or glow, signaling that the unit has reached its "end of life" and must be replaced ensuring your safety is never left to chance.

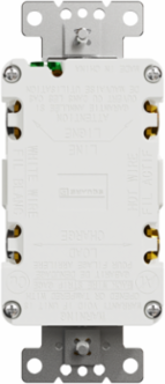

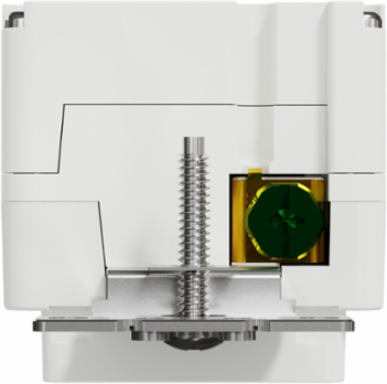

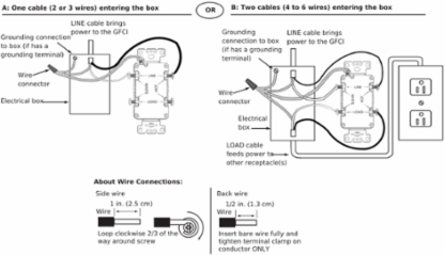

- The SQR51101WH supports feed-through wiring. This allows a single GFCI to provide downstream protection to standard "non-GFCI" outlets on the same circuit. Additionally, it features back-wire clamps and a self-grounding brass clip, which significantly speeds up installation for Canadian electricians and DIYers by ensuring a secure, reliable connection with minimal effort.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, United States |
|---|---|
| Depth | 41 mm |
| Weight | 130.2 g |
|---|
Complementary Attributes
| Ie Rated Operational Current Ac | 15 A |
|---|
| Ue Rated Operational Voltage | 125 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| X Main Color Tint | white |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.10611 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 38 kg CO2 eq., 37.538 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Use Carbon Footprint | 52.404 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Aesthetic Name | X Series |
| Device Application | power supply |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Outlet Poles Configuration | 2P + E |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Type | GFCI |
| Range | Square D X Series |
| Socket Additional Information | tamper resistant |
| Software Version | EIME v5.8.1 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 90 kg CO2 eq. |
| Connections Terminals | phase and neutral 4 screw terminal copperearth 1 screw terminal copper |
| Data Source | extrapolated product |
| Width Nominal | 42 mm |
| Nbr. Of Units In Pkg. | 1 |
| Carbon Footprint Kg Co2 Eq Total Life Cycle | 90.119 |
| Packaging Weight In G | 35.8 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.064253, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0058365, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 52 kg CO2 eq., 52.404 |
| Local Publishable Date | 2026-08-19 |
| Pre Comm Date | 2020-12-18 |
| Manufacturing Carbon Footprint | 37.538 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Body Type | decorator |
| Earth Circuit | self earthing |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Modules | 1 |
| Outlet Standard | NEMA |
| Product Or Component Type | socket-outlet |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Socket Number | 2 |
| Surface Finish | Matte |
| Targeted Channel | distributor |
| Main Color Tint | white |
| Database Version | 2016-11 |
| Height Nominal | 103 mm |
| Certificate Agency | cULus |
| Customs Code | 8536308000 |
| Warranty In Months | 24 |
| Functional Unit Description | This product main is provide ability to connect/disconnect, during 20 years, the plug of a load consuming 15A under a voltage of 125AC, while protecting the user from direct contact with live parts, and providing ground fault interuption capability. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 47 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 90.119 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-05-27 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2005012EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2005012EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | socket-outlet |
|---|
ETIM
| ETIM 8 | EC000125 |
|---|---|
| ETIM 10 | EC000125 |
| ETIM 9 | EC000125 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
