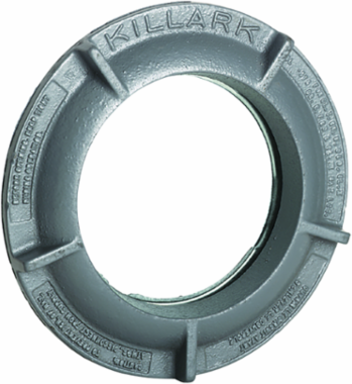

Killark GL-775 GL Series 7-3/4 Inch Round Glass Lens Cover, Aluminum, Type 4 IP66, NEMA 3, 4, 4X

GL Series 7-3/4 Inch Round Glass Lens Cover, Aluminum, Type 4 IP66, NEMA 3, 4, 4X
  • MPN: GL-775
  • UPC: 783936213101
  • PPN: HBL-GL-775
  • UNSPSC: 39121314

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$642.29/ EA

Description

GL Series, 7-3/4" Dia. Viewing, Class I, II, III, BCDEFG, Cast Aluminum,Type 4 IP66, Threaded Round Glass Lens Cover

Features

  • Threaded glass lens screw covers provide easy access to interior.
  • High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
  • Glass lens made of tempered soda lime.
  • Cover o-ring, Nitrile (BUNA-N) material, supplied standard for a Type 4X rating.
  • Electrostatically applied gray powder epoxy/polyester finish on exterior of covers.
  • Clear cover lens for viewing.

Specifications

Specifications

Country of Origin
United States
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Application
Use GL Series lens on: all EXB boxes, XJB 16" x 48", and XJB 24" x 24".
Length
5 in
Size
5 in x 12 in x 13.25 in
Type
Lens Cover
Cover Type
Threaded
ARRA Compliant
Contact Manufacturer
Description - Invoice
4"/8" LENS COVER
Harmonization Code
7616995190
Lead Time
10 wk
Order Multiple
1 EA
Sub Class Code
D25D252
Gross Weight with Packaging
7.66
Material
Copper-free aluminum
Base Unit of Measure
EA
Carton - SCC-14 Next Lower Level Sub Pack
00783936213101
Dimensions5 in x 12 in x 13.25 in
Height13.25 in
ColorGray
NEMA Rating3, 4, 4X
Special FeaturesClear cover lens for viewing.
Width12 in
Nema Rating3, 4, 4X
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514 / E83696
SeriesGR Enclosures Series
BOX SIZE13.250x5.000x12.000 (in)
Master Pack DescriptionEach

Certifications

EU RoHS Indicator
Contact Manufacturer
