Mersen GPM-A4 GPM Panel Mount Fuse Holder, 15-30 Amp, 1 Pole, 250-600 VAC, Thermoplastic Polycarbonate

GPM Panel Mount Fuse Holder, 15-30 Amp, 1 Pole, 250-600 VAC, Thermoplastic Polycarbonate
  • MPN: GPM-A4
  • UPC: 782001360344
  • PPN: FER-GPM-A4

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$14.83/ EA

Description

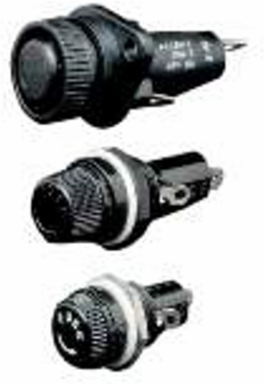

Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.

Specifications

Product Details

Ampere Range
15 - 30 A
ROHS Compliant
Consult Technical Services
Mounting
Panel Mount
SCCR
100kA/200kA
AC Voltage Range
250 - 600 VAC
Body Material
Thermoplastic Polycarbonate
Lead Free
Consult Technical Services
Number of Poles1
StandardsUL Recognized Component to standard 4248-1, File E52283 CSA Certified, Class 6225, File 32169 UL Recognized Component to standard 4248-1, File E118864 CSA Certified, Class 908501, File AP82191
Connection Terminal Type1/4" Quick Connect / Solder 1/4" Quick Connect / Solder, Right Angle Solder Solder, Right Angle 3/16" Solder / QC 1/4" Solder / QC Quick Connect
CE conformityConsult Technical Services
Materials ContactTin-plated Copper
DC Voltage600 VDC
