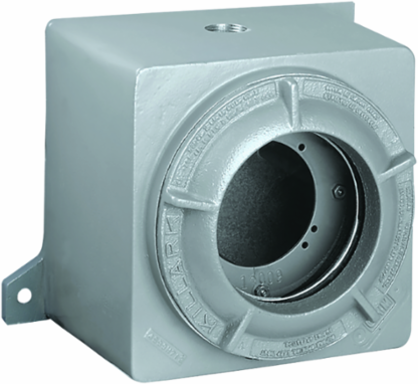

Killark GRM-375L52 GR Series Meter Housing, 6 x 6 x 12.25 Inch, Cast Aluminum, Type 4, Class I-IV
- MPN: GRM-375L52
- UPC: 783936233475
- PPN: HBL-GRM-375L52
- UNSPSC: 39121314
CAD
$3150.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
GR Series, 6 X 6 X 12.25, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Meter Housing
Features
- Compact rectangular enclosures with threaded lens covers for mounting of 3”, 3-1/2”, 4” or 4-1/2” round or rectangular instruments such as ammeters and voltmeters.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction and tempered soda lime glass, cemented in place.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover.
- Two 3/4”-14 NPT drilled and tapped conduit openings, one top and one bottom, are standard.
- Internal mounting pan is attached to inside back of box with spacers for mounting meter.
- Compact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has lens cover. Cast mounting lugs are standard on al
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Application | Use GR Series Instrument Enclosures for mounting of 3", 3-1/2", 4", or 4-1/2" round or rectangular instruments such as ammeters and voltmeters. Two 3/4"-14 NPT drilled and tapped conduit openings, one top and one bottom, are standard. Internal mounting pa |
| Length | 8.5 in |
| Special Features | Compact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has lens cover. Cast mounting lugs are standard on al |
| Width | 9.75 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 4-1/2" N-371 SERIES ROUND ENCL |
| Harmonization Code | 7616995190 |
| Lead Time | 20 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D252 |
| Gross Weight with Packaging | 14.73 |
| Material | Copper-free aluminum |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936233475 |
| NAICS Code | 3359326103 |
| Dimensions | 8.5 in x 9.75 in x 7.25 in |
|---|---|
| Height | 7.25 in |
| Color | Gray |
| Size | 8.5 in x 9.75 in x 7.25 in |
| Type | Enclosure & Lens Cover |
| Cover Type | Threaded |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | No |
| CSA File Number | LR11716 |
| UL File Number | E10514 / E83696 |
| Series | GR Enclosures Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
