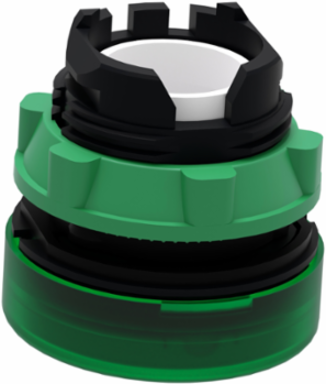

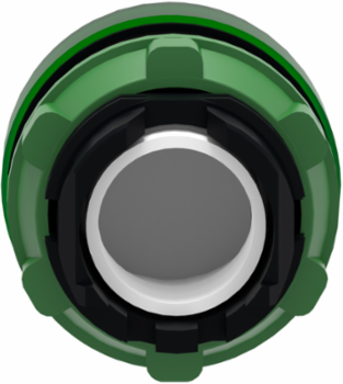

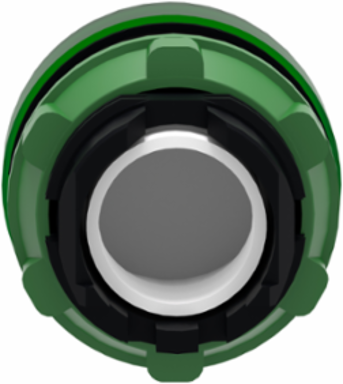

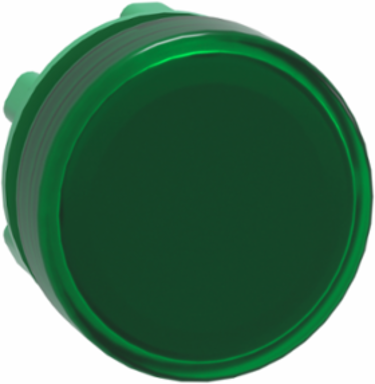

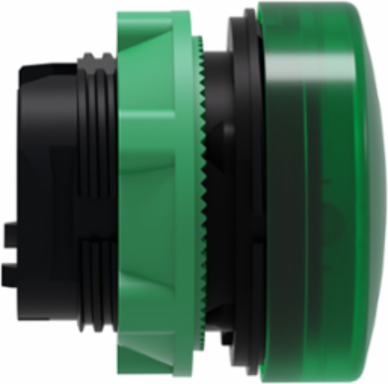

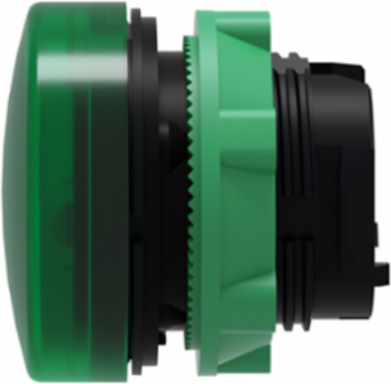

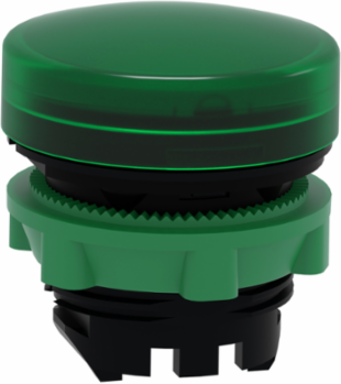

Schneider Electric ZB5AV033 Harmony XB5 Green Pilot Light Head, 22mm, IP66, Universal LED
- MPN: ZB5AV033
- PPN: SCH-ZB5AV033
CAD
$9.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, plain lens head for pilot light with universal LED is green. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features

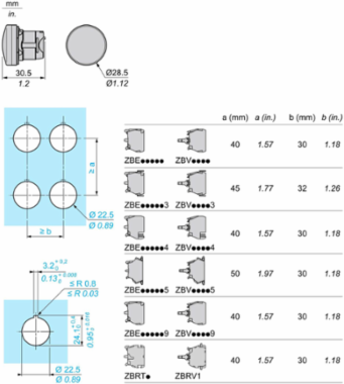

- The Schneider Electric ZB5AV033 features a standard 22mm mounting diameter, guaranteeing seamless mechanical compatibility with your pre-existing industrial control panels and operator consoles. This drop-in installation eliminates the need for panel re-machining, saving valuable assembly time during retrofits or system integration.
- Built with a robust dark grey plastic bezel from the rugged Harmony XB5 series, this pilot light head offers superior electrical double insulation and high chemical robustness against harsh solvents, detergents, alcohol, and cutting oils. It is the ideal, non-corrosive solution for food and beverage processing plants, medical cleanrooms, and chemical facilities.
- This industrial indicator head carries rigorous IP66, IP67, IP69, and IP69K ratings alongside NEMA 4X certifications, verifying complete defense against high-pressure water jets, dust ingress, and heavy vibration. This extreme ingress protection minimizes unscheduled machine downtime by preventing moisture failures during intense facility washdowns.
- Featuring a sharp, vibrant green plain lens, this signaling unit maximizes color intensity and lumen output to eliminate visual distortion. This high-clarity lens allows floor technicians to safely monitor complex machine statuses and process operations at a glance from across the factory floor.
- Designed to perform reliably under extreme thermal stress, this pilot light head maintains structural integrity and performance across a wide operating temperature range from -40 C to 70 C. This allows you to deploy it confidently in outdoor power distribution panels, freezing refrigeration facilities, or high-heat foundry applications.
