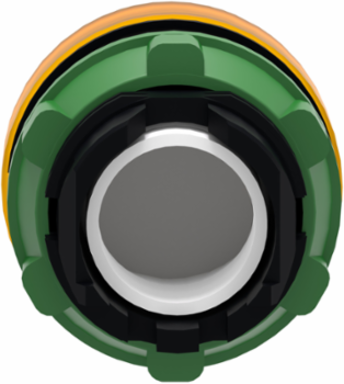

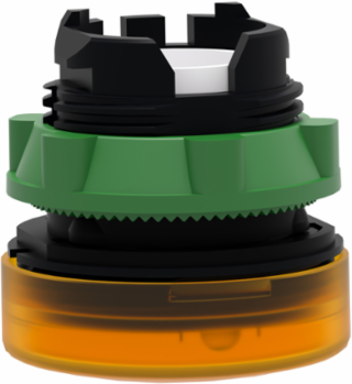

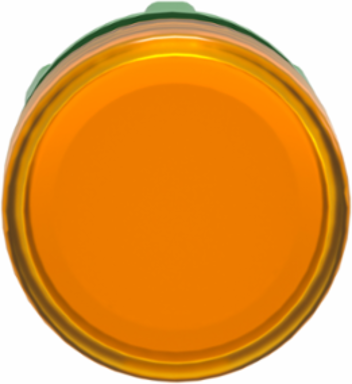

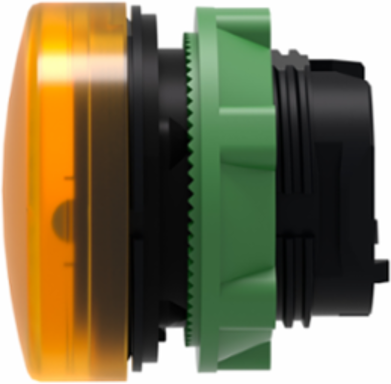

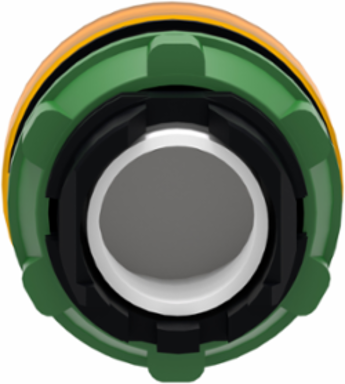

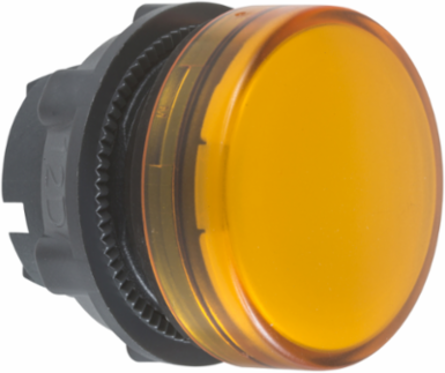

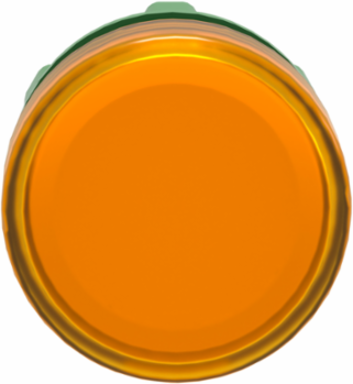

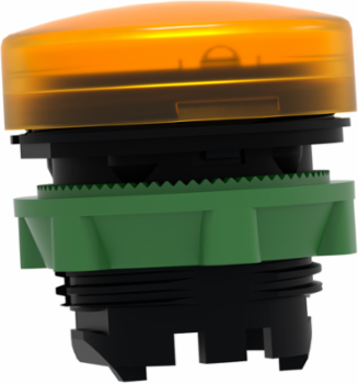

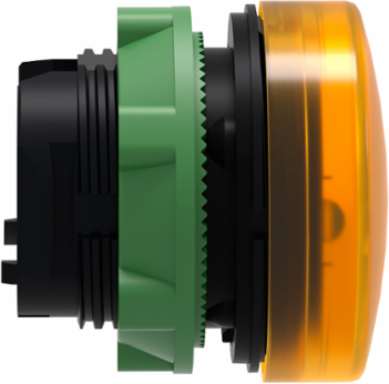

Schneider Electric ZB5AV05 Harmony XB5 Pilot Light Head, 22mm, Orange, IP66, Metal
- MPN: ZB5AV05
- PPN: SCH-ZB5AV05
CAD
$8.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5 plain lens orange head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|

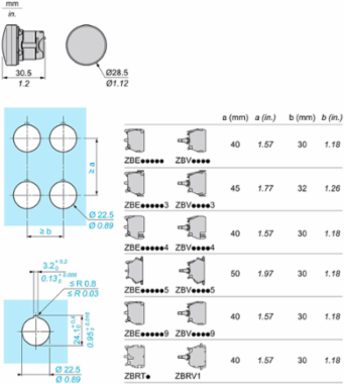

Physical Attributes
| Cap Operator Or Lens Color | yellow |
|---|---|
| Cad Overall Height | 29 mm |
| Cad Overall Depth | 31 mm |
|---|---|
| Cad Overall Width | 29 mm |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 1, no |
| Mounting Diameter | 22 mm, 22 mm |
| Certificate Agency | IEC 60947-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 508, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0020922667, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0062173333, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Bezel Material | dark grey plastic |
| Device Short Name | ZB5 |
| Group Of Product | lens fitted BA9s |
| Main Group | pilot light |
| Overvoltage Category | class II conforming to IEC 60536 |
| Product Or Component Type | head for pilot light |
| Range Of Product | Harmony XB5 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP2308027_V1-EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 22 |
| Package Weight(Lbs) | 16.000 g |
| Warranty (In Months) | 18 |
| Customs Code | 8531909001 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Composition Code | P3 front mounting BA 9sP4 front mounting BA 9s and transformer, PF2 front mounting BA 9s |
| Cap Operator Or Lens Color | yellow |
| Cap/Operator Or Lens Colour | orange, yellow |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0277568889 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.1 kg CO2 eq., 0.12208 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Plastic Content | 16 % |
| Compatibility Code | ZB5 |
| Gcr Bridge | ZB5AVCUST01 |
| Head Type | standard |
| Operator Additional Information | with plain lens |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Station Name | XALD 1...5 cut-outsXALK 2...5 cut-outs |
| Total Lifecycle Carbon Footprint | 0.2 kg CO2 eq. |
| Operator Add Information | with plain lens |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Pilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintece for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards.. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] | -0.3464 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653 |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.1581464889 |
| Environmental Disclosure | ENVPEP2308027_V1-EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | BA 9s |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308027EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308027_V1-EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | head for pilot light |
|---|
| Range Of Product | Harmony XB5 |
|---|
ETIM
| ETIM 8 | EC000223 |
|---|
| ETIM 9 | EC000223 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
