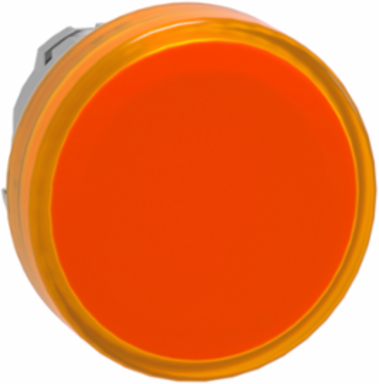

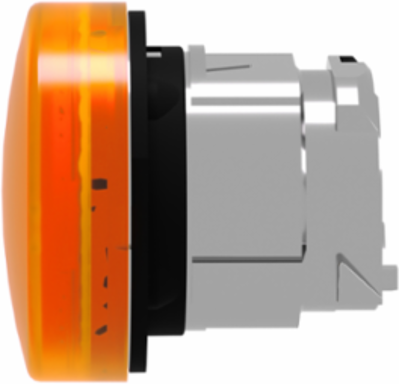

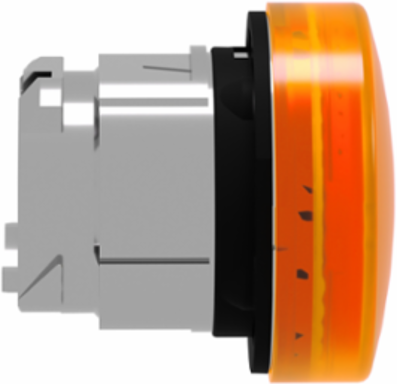

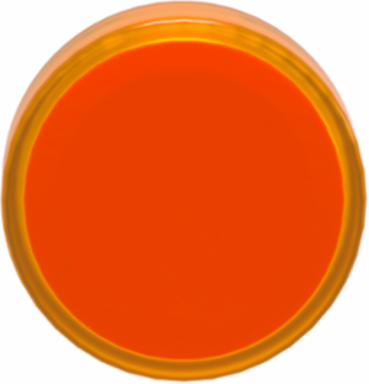

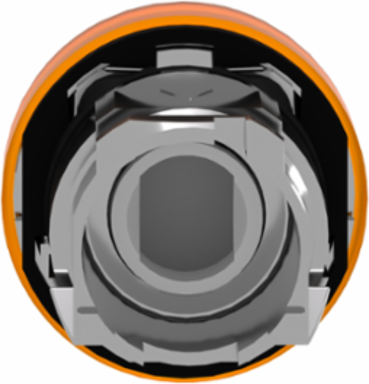

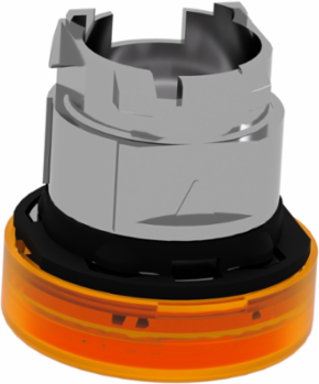

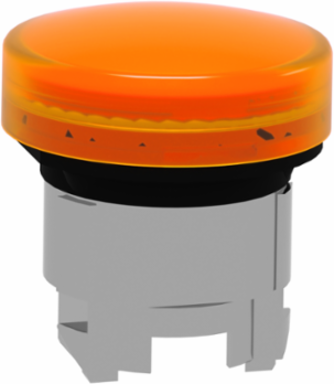

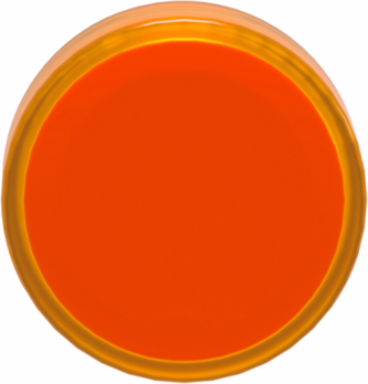

Schneider Electric ZB4BV053 Harmony XB4 Pilot Light Head, 22mm Metal, Orange, IP66, Universal LED
- MPN: ZB4BV053
- PPN: SCH-ZB4BV053
CAD
$9.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB4, plain lens head for pilot light with integral LED is orange. This head for integral LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- The ZB4BV053 is a 22mm "Harmony XB4" pilot light head featuring a plain, circular lens. This is the modular front-end component designed to be combined with a light block and mounting collar to create a complete visual signaling device for industrial control panels.
- The lens is a vibrant yellow (amber) colored plastic. In industrial standards like IEC 60204-1, yellow typically signifies "Abnormal" or "Warning" conditions. It serves as a clear visual indicator to operators that a system is approaching a limit or is in a state requiring intervention.
- This specific head is designed to be used with a Protected LED light block. LED technology ensures a long service life and high resistance to vibration compared to traditional incandescent bulbs, significantly reducing maintenance costs and downtime in high-vibration machinery.
- Part of the Harmony XB4 range, this head features a Chromium-plated metal bezel. This metal construction provides superior mechanical strength and chemical resistance compared to plastic alternatives, making it ideal for heavy-duty applications in automotive, food and beverage, or manufacturing plants.
- The ZB4BV053 is built to withstand extreme conditions, carrying an IP66, IP67, IP69, and IP69K rating. It is also rated for NEMA 4, 4X, and 13. This ensures the component remains functional even when subjected to high-pressure hot water washdowns or exposure to oils and coolants.
Documentation & Downloads
Specifications
Additional

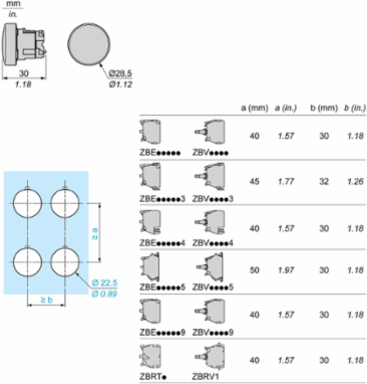

- Mounting Diameter
- 22 mm (0.87 in)
- Vibration Resistance
- 5 gn (2 to 500 Hz) IEC 60068-2-6
- Operating Temperature Range
- -40 to 70 B0C (-40 to 158 B0F)
- Range
- Harmony XB4
- Overall Width
- 29 mm
- Shape of Signaling Unit Head
- Round
- Bezel Material
- Chromium plated metal
- Material
- Chromium plated metal
- Lens Type
- Plain
- NEMA Degree of Protection
- NEMA 4X, NEMA 13
- Overvoltage Category
- Class I IEC 60536
- Net Weight
- 0.026 kg (0.06 lb)
Shock Resistance30 gn (18 ms), 50 gn (11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to High Pressure Washer7,000,000 Pa (1015.26 psi) at 55 C for 0.1 m
Product CompatibilityUniversal LED
Overall Depth30 mm
Overall Height29 mm
Head TypeStandard
Bezel FinishChromium plated
ColorOrange
IP Degree of ProtectionIP66, IP67, IP69, IP69K IEC 60529
IK Degree of ProtectionIK06 conforming to IEC 50102
StandardsEN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, UL 508, JIS C8201-1
