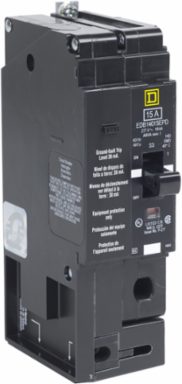

Square D EGB14050EPD Mini Circuit Breaker 50A 1-Pole 277V AC Bolt-On Grit 30 mA
- MPN: EGB14050EPD
- UPC: 785901446323
- PPN: SCH-EGB14050EPD
CAD
$893.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 50A, 1 pole, and has a operating voltage of 277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
- Depth
- 4.05 in
ComplianceTAA Compliant
Complementary Attributes
- Line Rated Current
- 50 A
Important Information Attributes
- Persona Type Ids
- LC, OM
- Awg Gauge
- AWG 14...AWG 6 copper, AWG 12...AWG 4 aluminium
- Protection Type
- overload, short-circuit
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3219959142, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0253088366, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 51 kg CO2 eq., 50.548
- Local Publishable Date
- 2025-11-19
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Not Applicable/Out of Scope
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Electrical Connection
- lugs aluminium
- Holding Current
- 630 A
- Module Type
- E-Frame
- Number Of Poles
- 1
- Number Of Spaces Required
- 2
- Product Destination
- NF panelboard
- Range Of Product
- 125 A Frame EDB-EGB-EJB
- Software Version
- EIME v5.9.4
- Total Lifecycle Carbon Footprint
- 56 kg CO2 eq.
- Trip Unit Technology
- thermal-magnetic
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 277 VAC and rated current 20 A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1P& 10- Rated breaking capacity 18 kA, 25 kA max& 10- Tripping curve 515-1
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Height Nominal
- 6.64 in
- Certificate Agency
- cULus
- Earth-leakage Sensitivity
- 30 mA
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 4292.7
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 50.548
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 7.7289
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 680.51
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 639.64
- Water Pollution (M3) Operational Energy Use [B6]
- 2492
Persona Type NamesContractor, Original Equipment Manufacturer
Circuit Breaker ApplicationHACR rated, HID rated
Tightening Torque3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10), 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.141110383
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.4202328043
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Use Carbon Footprint50.548
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2212008
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Full Compliance StatusNot Applicable/Out of Scope
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Device Short NameEGB
Energy Efficiency OptimizedFalse
Local Signallingtrip indicator
Mounting Modebolt-on
Number Of Spaces2
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Sustainable PackagingYes
Trip Unit Rating1800-1800 A
Pep CodeENVPEP2212008EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Width Nominal1.96 in
[Ue] Rated Operational Voltage277 V AC
Earth-leakage Protection Classclass B
Package Weight(Lbs)952.544 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]615.44
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]1.3515
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]639.64
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]40.869
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]40.869
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Ambient Air Temperature For Operation
- 40 °C
- Environmental Disclosure
- ENVPEP2212008EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Carbon Footprint56.4566479382
Circularity ProfileENVEOLI2212008
Eu Rohs DirectiveNot Applicable/Out of Scope
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2212008EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of Product125 A Frame EDB-EGB-EJB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
