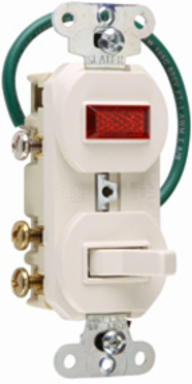

Pass & Seymour 695WG Grounding Combination Switch with Pilot Light, 15A, 120/125V, White
- MPN: 695WG
- UPC: 785007006193
- PPN: P-S-695WG
CAD
$53.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Grounding Combination Switch with Pilot Light, 15A, 120/125V, White
Features
- Easily accessible break-off separate or common feed.
- Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
- Side wire #12 and #14 AWG.
- Two devices fit into the space of one.
- Grounding combination devices meet NEC Requirements.
- Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.15 in |
|---|---|
| Color | White |
| Finish | Satin |
| Material | Thermoplastic |
| Special Features | Easily accessible break-off for separate or common feed. Long-life red neon lamp in pilot light rated 1/25 Watt, 125V. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements. |
| Load Type | CFL |
| Standard | UL20 |
| Load Type | Xenon |
| Type | Combination |
| Number of Gangs | 1 |
| Load Type | Universal |
| Features | Pilot Light |
| Load Type | Fluorescent |
| Type | Tamper-Resistant |
| Mounting Type | Wall Box |
| Wall Plate Included | No |
| Operating Cycles | 30000.0 |
| Requires Neutral Wire | Yes |
| Connection Location | Side Only |
| Application Sector | Residential |
| Warranty Type | 1-Year Limited Warranty |
| Environmental Conditions | Flammability: UL94 V2 |
| Height | 4.06 in |
|---|---|
| Width | 1.32 in |
| Country of Origin | Mexico |
| Product Line | Pass & Seymour |
| Type | Switch |
| Load Type | LED |
| Amperage | 15.0 A |
| Voltage | 120.0 V |
| Load Type | Halogen |
| Switch Type | Toggle |
| Features | Combination |
| Indoor/Outdoor | Indoor |
| Number of Poles | 3-Way |
| Load Type | Incandescent |
| Number of Switches | 1.0 |
| Throw Type | Single Throw |
| Contact Configuration | N-O |
| Load Rating | 15 A @ 120 VAC |
| Application Sector | Hospitality |
| Wire Connection Type | Screw Terminals |
| Terminal Accommodation | #14 AWG - #12 AWG |
