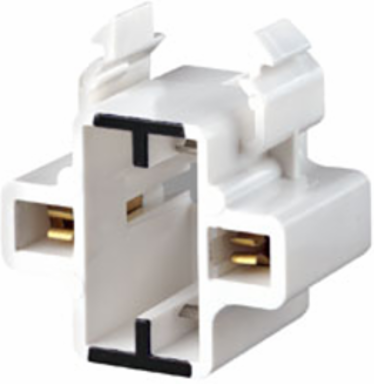

Leviton 26720-100 GX23, GX23-2 Base, 2-Pin, Compact Fluorescent Lampholder, Horizontal, Snap-In, Black Color Code, , Quick-Connect 18AWG Solid or Str. Tinned - White Body

GX23, GX23-2 Base, 2-Pin, Compact Fluorescent Lampholder, Horizontal, Snap-In, Black Color Code, , Quick-Connect 18AWG Solid or Str. Tinned - White Body

MPN: 26720-100
UPC: 078477949689
PPN: LEV-26720-100

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$5.45/ EA

Qty:

Loading add to cart quantity...

Description

GX23, GX23-2 Base, 2-Pin, Compact Fluorescent Lampholder, Horizontal, Snap-In, Black Color Code, , Quick-Connect 18AWG Solid or Str. Tinned - White Body

Specifications

Mechanical Specifications

Availability: Distribution

Body Style: Standard Body

Color Code: Black

Mounting Type: Snap-In

Retainer Clip: Stainless Steel

Wire Strip Length: 3/8 Inch

Body MaterialThermoplastic

ColorWhite

Mounting OrientationHorizontal

Panel Thickness.023 - .039

TerminationQuick-Connect 18AWG Solid or Str. Tinned

Wiring Ports2

Product Features

Lamp Base: GX23, GX23-2

Lampholder Type: Compact

Rated Wattage: 75W

Style Name: Standard Body

Warranty: 1 Year Limited

Lamp Contacts2-Pin

Light TypeFluorescent

Standards and CertificationsUL/CSA/NOM

Voltage600 Volt

Standards and Certifications

CSA Certified: File LR-1863

UL Listed: File E5833

NOM057

Specifications

Country of Origin: Mexico

RoHS CompliantTrue
