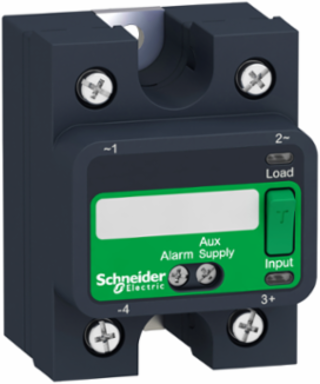

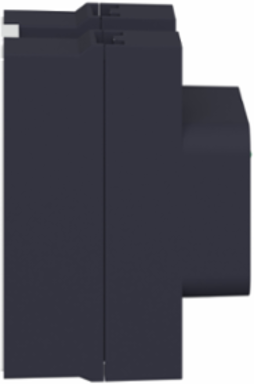

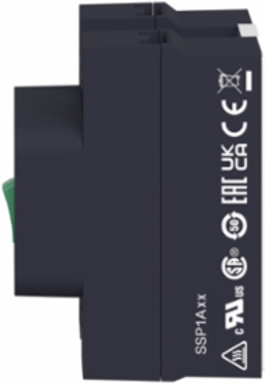

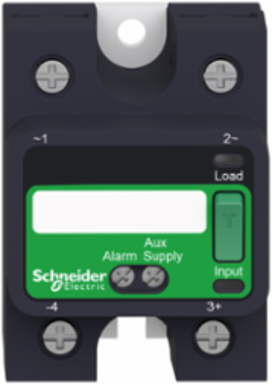

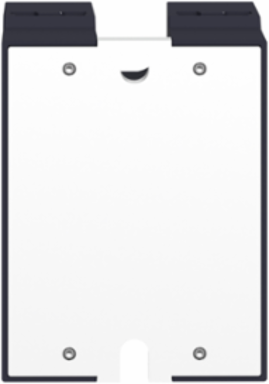

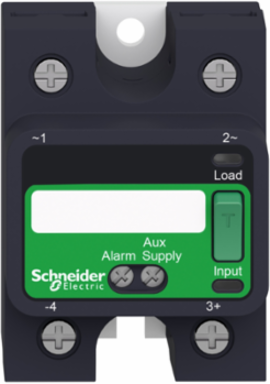

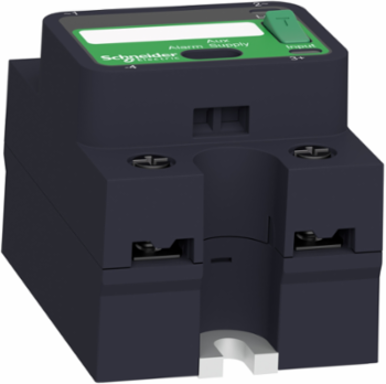

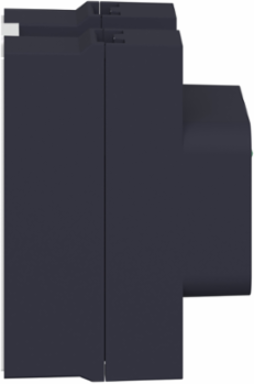

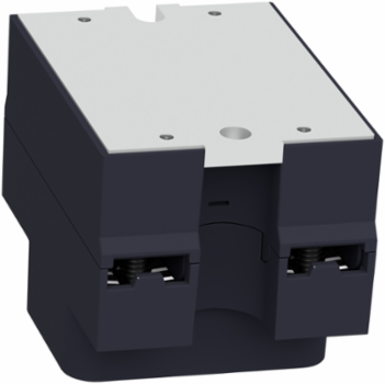

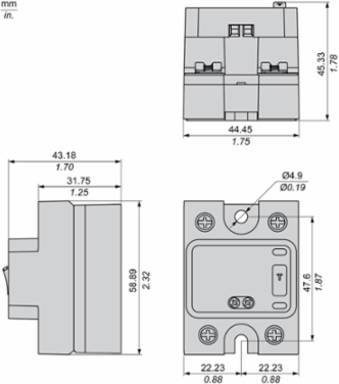

Schneider Electric SSP1A475BDS Harmony Solid State Relay 75 A Zero Voltage Switching DIN Rail Mount
- MPN: SSP1A475BDS
- PPN: SCH-SSP1A475BDS
CAD
$151.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs. Its rated current is 75A, is controlled withA 4V to 32V DC circuit, has a rated load voltage of 48V to 660V AC output. It also has a test button for easy debugging, testing and commissioning. It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad, or on DIN rails with an accessory heatsink It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. This premium product conforms to international standard and certifications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Complementary Attributes
- Maximum Voltage Drop
- <1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
- Line Rated Current
- 75 A
- Maximum Leakage Current
- 1 mA off-state
- Maximum Switching Voltage
- 1 V DC turn-off
- Minimum Switching Voltage
- 4 V DC turn-on
Absolute Maximum Voltage1200 V
Maximum Horse Power Rating1.5 hp 120 V AC3 hp 240 V AC7.5 hp 480 V AC
Maximum Output Current30 mA 32 V DC
Minimum Load150 mA
Rated Current75 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- with test button, with test button
- Electromagnetic Compatibility
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test criteria A output ports conforming to IEC 61000-4-3radiated radio-frequency electromagnetic field immunity test criteria B alarm port conforming to IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5
- Marking
- CSA, UL, EAC, CE
- Safety Reliability Data
- B10d = 1731395, MTTFd = 1875.9 years
- Control Circuit Voltage
- 4...32 V
- [Uc] Control Circuit Voltage
- DC, 4...32 V
- Connections - Terminals
- ring lugs 11.7 x 4.5 mm outputscrew terminals 0.2...3.3 mm², 24 AWG...12 AWG) with cable end input, screw terminals 0.5...5.26 mm², 20 AWG...10 AWG) with cable end output, screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) without cable end inputscrew terminals 0.5...8.26 mm², 20 AWG...8 AWG) without cable end outputforked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0154824742, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0006729155, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 7 826 kg CO2 eq., 7826.3624408616
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1505006EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Auxiliary Connection Terminal
- screw-type connector, 0.5...1.5 mm² 20 AWG...16 AWG)slotted Philips
- Device Short Name
- SSP1
- Load Current
- 0.15-75 A
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protection Device Type
- type 1 - 50 A miniature circuit breaker (MCB) Btype 2 - 40 A miniature circuit breaker (MCB) B
- Range Of Product
- Harmony Solid State Relays
- Software Version
- EIME v5.8.1
- Thermal Resistance
- 0.3 °C/W junction to case
- Pep Code
- ENVPEP1505006EN
- Pep Verification Date
- 2019-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity Mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 56
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength4 kV AC for input/output, 4 kV AC for input or output to case
Local SignallingLED, steady, green ON status control input/test button actuatedLED, steady, amber ON status load, LED, flashing, amber control input to energise loadLED, steady, red open-circuit control input, LED, flashing, red load cut-off/short-circuit
Response Time0.5 cycle (turn-on), 0.5 cycle (turn-off)
Tightening Torque1.5...1.7 N.m for input2...2.2 N.m for output, 17.7...19.47 lb.in for output, 13.27...15.04 lb.in for input0.5...0.6 N.m for auxillary terminal, 4.4...5.3 lb.in for auxillary terminal
Certificate AgencyCSA, EAC, UL, CE
[Uimp] Rated Impulse Withstand Voltage6 kV output to case, 6 kV input to output
Maximum I²T For Fusing4150 A².s for 8.33 ms at 60 Hz, 4555 A².s for 10 ms at 50 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0284090722
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.3318762887
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Cos Phi0.5-0.5 (with maximum load)
Insulation Resistance1000 MOhm at 500 V DC
Mounting Supportpanel
Phase1 phase
Product Or Component Typepanel mount relay
Provided Equipmentthermal pad
ReturnabilityNo
Sustainable PackagingYes
Total Lifecycle Carbon Footprint7 828 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh13255.653
Energy Model - Installation [A5]Electricity Mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; <lt/> 1kV; EU-27
Dv/Dt500 V/µs off-state at maximum voltage
Package Weight(Lbs)110.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 7827.7388816121
- Environmental Disclosure
- ENVPEP1505006EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1505006EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-125 °C, -40-125 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1505006EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2019-05-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Provided Equipment
- thermal pad
Product Or Component Typepanel mount relay
Range Of ProductHarmony Solid State Relays
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- zero voltage switching, SCR output
- Output Switching Mode
- zero voltage switching
Maximum Output Current30 mA 32 V DC
Output Voltage48...660 V AC
Surge Protection And Filtering Attributes
- Surge Current
- 1000 A 16.6 ms
Input Attributes
- Cos Phi
- 0.5-0.5 (with maximum load)
Input Current Limits7-12 mA
Overview Attributes
- Device Presentation
- complete product
