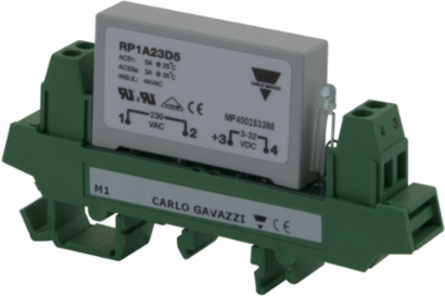

Carlo Gavazzi RP1A23D3M1 Solid State Relay, 230V, 3A, DIN Rail Mount, Zero Cross Switching
Carlo Gavazzi RP1A23D3M1 Solid State Relay, 230V, 3A, DIN Rail Mount, Zero Cross Switching
- MPN: RP1A23D3M1
- PPN: CLG-RP1A23D3M1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$57.86/ EA
Description
Solid State Relay, 230V, 3A, DIN Rail Mount, Zero Cross Switching
Specifications
Specifications
- Control voltage DC
- Min.5-Max.34
- Operating voltage
- Min.12-Max.265
- Rated current AC-53a
- 2
- Modular version
- Yes
- With approval according to UL
- Yes
- Wall mounting/direct mounting
- No
- Zero switching
- Yes
- Instant On switching
- No
- Soft start switching
- No
- Output switching mode
- Zero cross
- Control type
- DC-Digital
- Rated output voltage
- 230
- Type of output
- AC
- Industry 1
- Plastic Machinery
- Industry 2
- Packaging, Filling, Wrapping Machinery
- Industry 3
- Packaging, Filling, Wrapping Machinery
- Industry 4
- HVAC&R Equipment
- Industry 5
- Material Handling, Automated Intralogistics
- Product Main Family
- Solid State Relay
- Web Class
- DIN rail mount
- Instant on
- No
- DC
- No
- Soft start
- No
Voltage type for actuatingDC
Rated current AC-513
Number of poles1
Switching at zero-crossingYes
Rail mounting possibleYes
Peak switchingNo
DC switchingNo
Proportional switchingNo
FunctionSolid state relay
TypologyDIN rail mount
Power connectionBox clamp
Rated current category1-5
Rated current category1-5 A
Application 1Dryers and dosing systems
Application 2Wrapping and sealing machines
Application 3Sealing and labelling machines
Application 4Pellet burners
Application 5Automated conveyors, distribution systems
Product Main Family GroupDIN rail mount
Zero crossYes
PeakNo
ProportionalNo
Rated current range1-5
