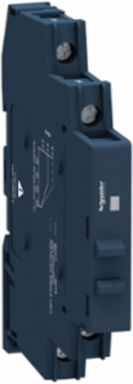

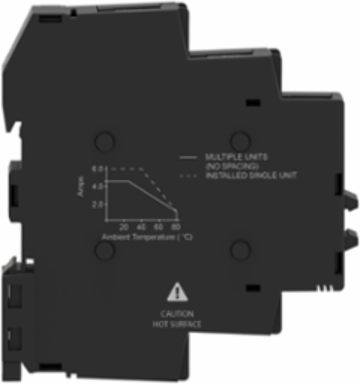

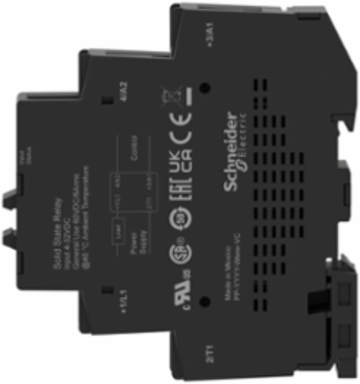

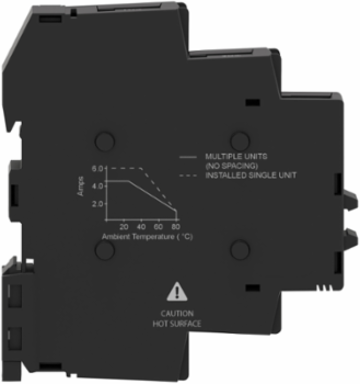

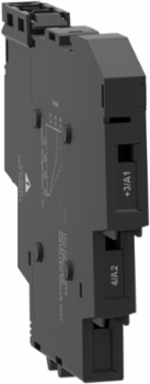

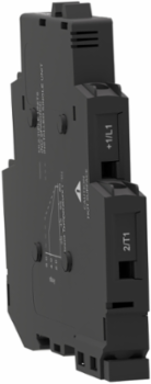

Schneider Electric SSM1A16B7 single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, zero voltage switching, input 18 to 36V AC, output 24 to 280V AC
Schneider Electric SSM1A16B7 single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, zero voltage switching, input 18 to 36V AC, output 24 to 280V AC
- MPN: SSM1A16B7
- PPN: SCH-SSM1A16B7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$56.18/ EA
Description
single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, zero voltage switching, input 18 to 36V AC, output 24 to 280V AC
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307069EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
Circularity ProfileENVEOLI1307069EN
Environment
- Product Certifications
- CSA || UL
- Standards
- IEC 60950-1 || IEC 61000 || IEC 62314
- Dielectric Strength
- 4 kV AC input/output || 4 kV AC input or output to case
- Ip Degree Of Protection
- IP20
- Ambient Air Temperature For Storage
- -30-100 °C
Ambient Air Temperature For Operation-30-80 °C
Pollution Degree2
MarkingCE
Flame RetardanceV0 UL 94
Specifications
- Range Of Product
- Harmony Solid State Relays
- Product Or Component Type
- solid state relay up to 10 A
- Number Of Channels
- 1
Output Switching Modezero voltage switching
Network Number Of Phases1 phase
Device Short NameSSM
Complementary
- Cos Phi
- 0.5-0.5 with maximum load)

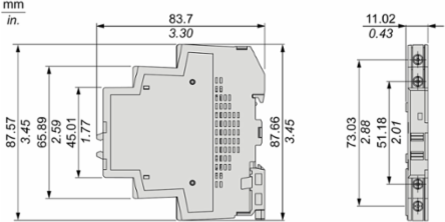

- Height
- 90.3 mm
- Motor Power Hp
- 0.16 hp 40 °C 240 V AC
- Insulation Resistance
- 1000 MOhm 500 V DC
- Maximum I²T For Fusing
- 410 A².s 10 ms 50 Hz || 375 A².s 8.33 ms 60 Hz
- Connections - Terminals
- screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
- Response Time
- 0.5 cycle turn-on) || 30 ms turn-off)
- Net Weight
- 0.05 kg
- Maximum Leakage Current
- 0.1 mA off-state
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Maximum Switching Voltage
- 4 V AC turn-off
- Capacitance Unbalance
- 10 pF input/output
- Width
- 11 mm
- Overvoltage Category
- III
[Uc] Control Circuit Voltage18...36 V AC
Output Voltage24...280 V AC
Tightening Torque0.5...0.8 N.m input || 0.5...0.8 N.m output
Mounting Supportsymmetrical DIN rail
Maximum Voltage Drop<1.3 V on-state
Surge Current285 A 16.6 ms || 300 A 20 ms
Load Current0.15-6 A
Minimum Switching Voltage18 V AC turn-on
Absolute Maximum Voltage600 V
Local Signallinginput status LED green)
Solid State Output Typezero voltage switching || SCR output
[In] Rated Current6 A
Input Current Limits3.5-8.5 mA
Depth83.7 mm
