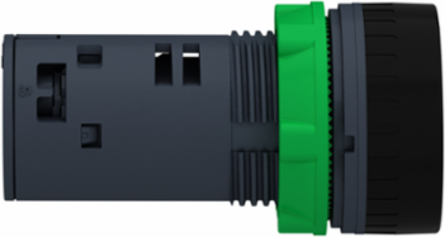

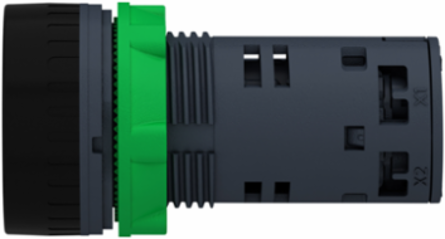

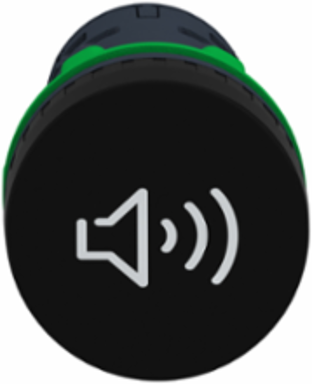

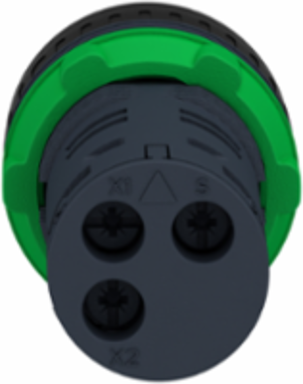

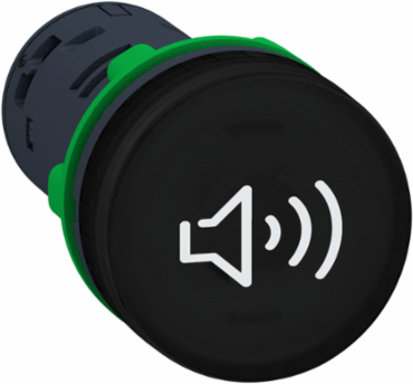

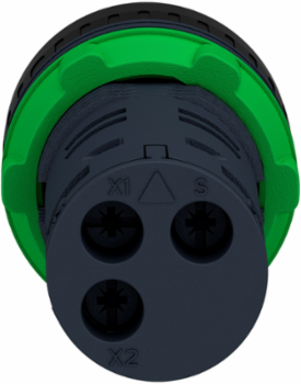

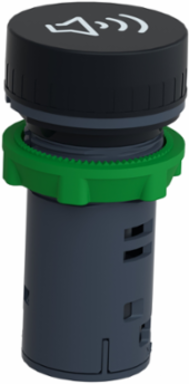

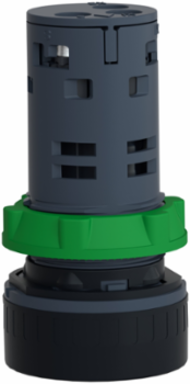

Schneider Electric XB5KSB Harmony XB5 Annunciator Buzzer, 22mm, 24V AC/DC, 90 dB
- MPN: XB5KSB
- PPN: SCH-XB5KSB
CAD
$56.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

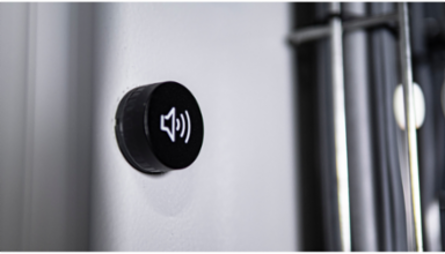

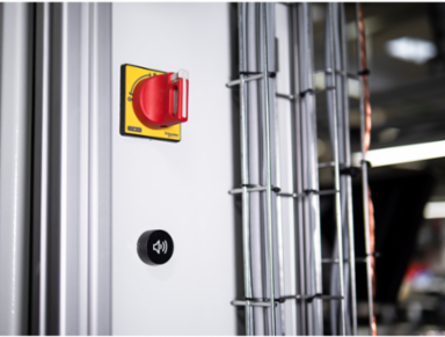

This Harmony XB5, annunciator siren is supplied with 24V AC/DC with noise level 85dB. This annuciator siren provides a signaletic sound alarm for your installation. It is easily installed into standard 22mm diameter cut-outs. It has an IP40 protection. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Product Or Component Type
- annunciator
- Head Type
- standard

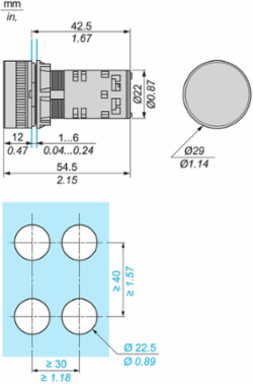

Mounting Diameter22 mm
Cap/Operator Or Lens Colourblack
Bezel Materialdark grey plastic
Complementary
- [Us] Rated Supply Voltage
- 24 V +/- 10 %
- Net Weight
- 0.024 kg
- Resistance To High Pressure Washer
- 9000000 Pa 80 °C 0.1 m

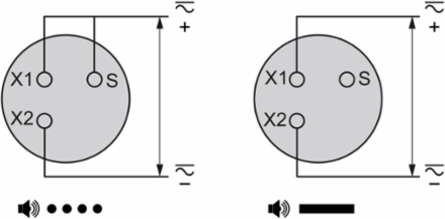

- Signalling Type
- continuous or intermittent tone
- Width
- 29 mm
- Supply Frequency
- 50/60 Hz
Height29 mm
Current Consumption<= 28 mA
Noise Level90 dB 6.8 kHz 0.1 m +/- 10 %
Supply Circuit TypeAC/DC
Depth55 mm
Environment
- Product Certifications
- UL listed || CSA || BV
- Standards
- IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || JIS C8201-1 || IEC 60529 || IEC 62262 || IEC 50102
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
Ambient Air Temperature For Operation-40-70 °C
Nema Degree Of ProtectionNEMA 4X || NEMA 13
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
