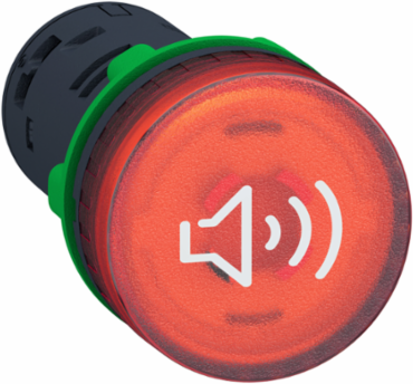

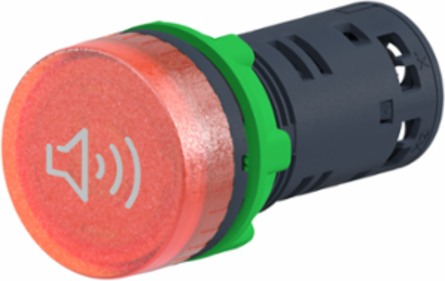

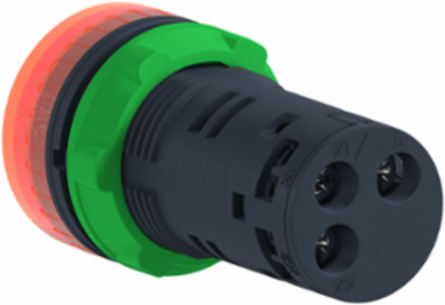

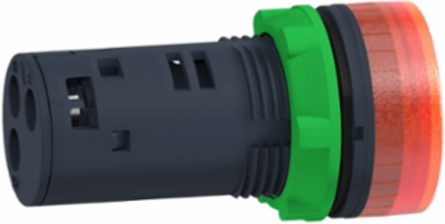

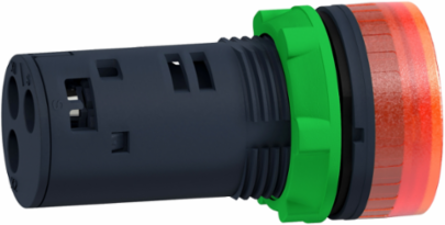

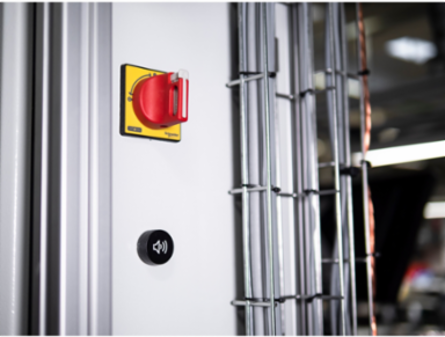

Schneider Electric XB5KS2G4 Harmony XB5 22mm Red Illuminated Buzzer, 90 dB, 110-120V AC/DC
- MPN: XB5KS2G4
- PPN: SCH-XB5KS2G4
CAD
$123.58
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Depth55 mm
Physical Attributes
- Cap Operator Or Lens Color
- red
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- <= 20 mA, <= 20 mA
- Certificate Agency
- UL Listed, CSA, BV
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0044152209
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 0.9785199131
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- plastic
- Noise Level
- 90 dB 6.8 kHz 0.1 m +/- 10 %
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Software Version
- EIME v5.6.0.1
- Supply Frequency
- 50/60 Hz
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Supply Voltage 31 Supply Voltage
- 110...120 V
- Database Version
- CODDE-2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Provide the audio and visual(Optional) signaling for 10 years at 5% use rate.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 2.1024
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Height Nominal
- 29 mm
- [Us] Rated Supply Voltage
- 110...120 V110...120 V +/- 10 %
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 20.5728
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 17.9568
- Water Pollution (M3) Operational Energy Use [B6]
- 42.504
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Cap Operator Or Lens Colorred
Carbon Footprint Of The Distribution Phase [A4]0.0036126285, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0003423563, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 kg CO2 eq., 1.03008
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2502013EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN

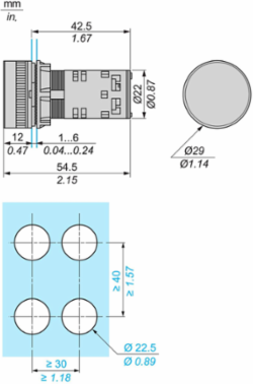

Mounting Diameter22.5 mm
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typeannunciator
Protective TreatmentTH
Resistance To High Pressure Washer9000000 Pa 80 °C 0.1 m

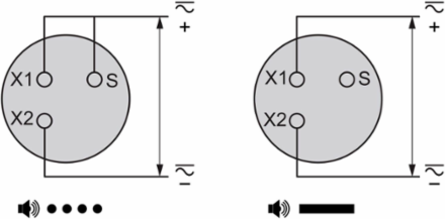

Signalling Typecontinuous or intermittent tone
Supply Circuit TypeAC/DC
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2502013EN
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %13
Width Nominal29 mm
Cap/Operator Or Lens Colourred
Package Weight(Lbs)28.000 g
Take-backNo
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]17.9568
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2.616
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.616
Customs Code8531809051
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2.0169701188
- Environmental Disclosure
- ENVPEP2502013EN
- Nema Degree Of Protection
- UL type 4X/13
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2502013EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2502013EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- annunciator
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001026
ETIM 9EC001026
