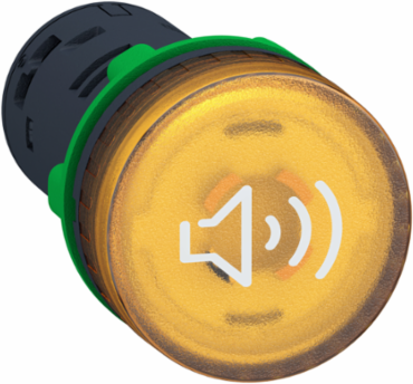

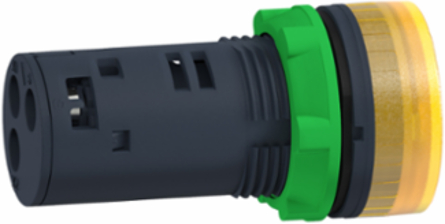

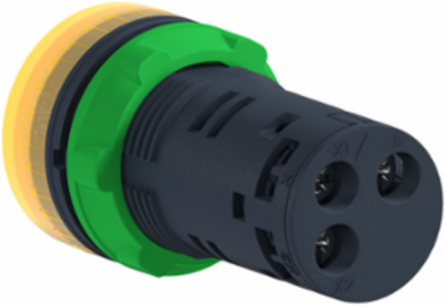

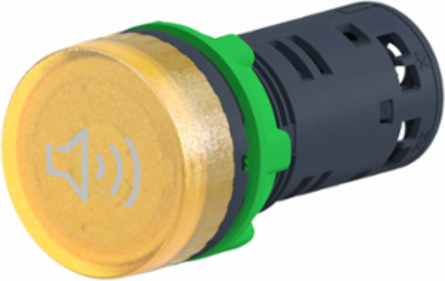

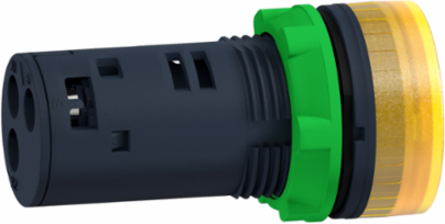

Schneider Electric XB5KS2B8 Harmony XB5 Illuminated Buzzer 22mm Yellow 24V AC/DC
- MPN: XB5KS2B8
- PPN: SCH-XB5KS2B8
CAD
$88.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Singapore, United States
Depth55 mm
Physical Attributes
- Cap Operator Or Lens Color
- yellow
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- <= 58 mA, <= 58 mA
- Certificate Agency
- UL Listed, CSA, BV
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0034836061, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0003301293, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0.6 kg CO2 eq., 0.5974464
- Local Publishable Date
- 2026-01-12
- Future Imap
- 32.11
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2502013EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N

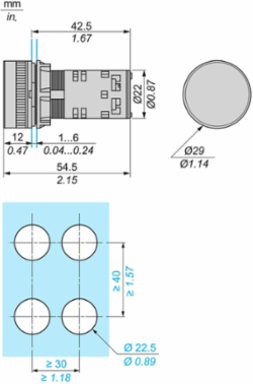

- Mounting Diameter
- 22 mm
- Overvoltage Category
- class II conforming to IEC 60536
- Product Or Component Type
- annunciator
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 9000000 Pa 80 °C 0.1 m

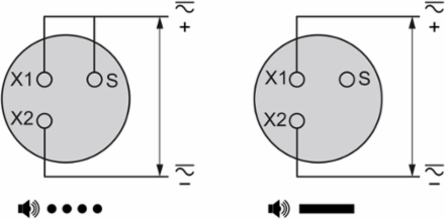

- Signalling Type
- continuous or intermittent tone
- Supply Circuit Type
- AC/DC
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2502013EN
- Pep Verification Date
- 2017-10-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 29 mm
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Cap Operator Or Lens Coloryellow
[Us] Rated Supply Voltage24 V, 24 V +/- 10 %
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0042575344
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.9435727734
Local Data StatusPublishable
Return IndicatorY
Future Msrp41.57
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialplastic
Noise Level90 dB 6.8 kHz 0.1 m +/- 10 %
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Software VersionEIME v5.6.0.1
Supply Frequency50/60 Hz
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Supply Voltage 31 Supply Voltage24 V
Database VersionCODDE-2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProvide the audio and visual(Optional) signaling for 10 years at 5% use rate.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal29 mm
Cap/Operator Or Lens Colouryellow
Package Weight(Lbs)27.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1.5490904431
- Environmental Disclosure
- ENVPEP2502013EN
- Nema Degree Of Protection
- UL type 4X/13
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2502013EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2502013EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2017-10-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- annunciator
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001026
ETIM 9EC001026
