Schneider Electric

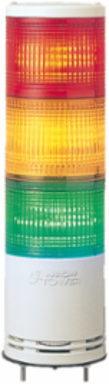

Schneider Electric XVC1M3K Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 100mm, base mounting, steady or flashing, IP54, 100...240V AC

Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 100mm, base mounting, steady or flashing, IP54, 100...240V AC
  • MPN: XVC1M3K
  • PPN: SCH-XVC1M3K

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$841.25/ EA

    Description

    Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 100mm, base mounting, steady or flashing, IP54, 100...240V AC

    Specifications

    Environment

    Product Certifications
    UL
    Ambient Air Temperature For Storage
    -35-70 °C
    Electrical Shock Protection Class
    class I IEC 61140
    Ip Degree Of Protection
    IP54 IEC 60529
    Ambient Air Temperature For Operation-30-50 °C
    StandardsIEC 60947-5-1 || IEC 60947-1
    Protective TreatmentTC

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1904008EN
    Circularity ProfileENVEOLI1904008EN
    Mercury FreeYes
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Complementary

    Height
    372 mm
    [Uimp] Rated Impulse Withstand Voltage
    4 kV
    Cable Cross Section
    0.33-0.33 mm² || 0.83-0.83 mm²
    Material
    polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover
    Marking
    CE
    Current Consumption
    160 mA
    Awg GaugeAWG 22 || AWG 18
    Flashing Frequency0.7-3 Hz
    Product Mountingon base
    Cable Length500 mm
    Net Weight1.4 kg

    Specifications

    Range Of Product
    Harmony XVC1
    Mounting Diameter
    100 mm
    Light Source
    LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green
    Component Name
    XVC
    [Us] Rated Supply Voltage
    100...240 V
    Beacon Or Indicator Bank Unit Type3 illuminated units
    Supply Circuit TypeAC
    Product Or Component Typecomplete pre-wired monolithic tower light
    Sound Signallingwithout
