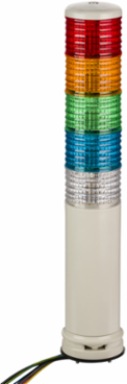

Schneider Electric XVC6M55SK Harmony XVC, Monolithic precabled tower light, plastic, red orange green blue clear, Ø60, tube mount, steady or flashing, buzzer, IP54, 100…240 V AC
Schneider Electric XVC6M55SK Harmony XVC, Monolithic precabled tower light, plastic, red orange green blue clear, Ø60, tube mount, steady or flashing, buzzer, IP54, 100…240 V AC
- MPN: XVC6M55SK
- PPN: SCH-XVC6M55SK
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$672.82/ EA
Description
Harmony XVC, Monolithic precabled tower light, plastic, red orange green blue clear, Ø60, tube mount, steady or flashing, buzzer, IP54, 100…240 V AC
Specifications
Environment
- Product Certifications
- UL
- Ambient Air Temperature For Storage
- -35-70 °C
- Electrical Shock Protection Class
- class I EN/IEC 61140
- Ip Degree Of Protection
- IP54 flat surface installation EN/IEC 60529
Ambient Air Temperature For Operation-10-50 °C
StandardsEN/IEC 60947-1 || EN/IEC 60947-5-1
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904008EN
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1904008EN
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 392 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- Flashing Frequency
- 1 Hz
- Product Mounting
- on base
- Cable Length
- 850 mm || 750 mm
- Net Weight
- 0.71 kg
Awg GaugeAWG 22 || AWG 18
Fundamental Frequency2.23 kHz
Cable Cross Section0.83-0.83 mm² || 0.33-0.33 mm²
Materialpolycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover
MarkingCE
Current Consumption115 mA
Specifications
- Range Of Product
- Harmony XVC6
- Beacon Or Indicator Bank Unit Type
- 5 illuminated units
- Supply Circuit Type
- AC
- Product Or Component Type
- complete pre-wired monolithic tower light
- Sound Signalling
- buzzer
Noise Level70-85 dB continuous or intermittent tone)1 m
Mounting Diameter60 mm
Light SourceLED steady or flashing red || LED steady or flashing orange || LED steady or flashing green || LED steady or flashing blue || LED steady or flashing clear
Component NameXVC
[Us] Rated Supply Voltage100...240 V
